0.84 cu in Hydraulic Gear Pump Wolverine by Prince Mfg.WPA14D9R

Description

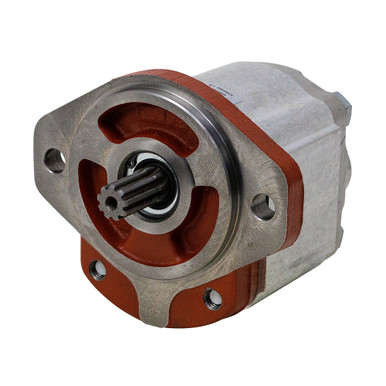

0.84 CU IN WOLVERINE WPA14D9R HYDRAULIC PUMP
New, Wolverine by Prince Mfg. WPA14D9R gear pump with rear inlet and outlet. Reversible gear sets, cast iron front and back covers.

SPECIFICATIONS

• Manufacturer Wolverine by Prince Mfg.
• Model WPA14D9R
• Disp. 0.84 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure: 3600 PSI Continuous
• Speed: 3500 RPM Max.
• Flow:
     1.55 GPM @ 500 RPM
     3.28 GPM @ 1000 RPM
     5.03 GPM @ 1500 RPM
     6.70 GPM @ 2000 RPM
     8.47 GPM @ 2500 RPM
     10.27 GPM @ 3000 RPM
     11.99 GPM @ 3500 RPM
• Mount 2 Bolt SAE A
• Shaft 5/8″ dia. x 1-1/4″ 9T SAE Spline
• Rqd. Filtration Code level 17/14/15 micron filtration for full PSI recommended
• Inlet Port SAE 12
• Outlet Port SAE 10
• Size 5.75″ x 5.125″ x 4.5″
• Shpg. 12 lbs.
