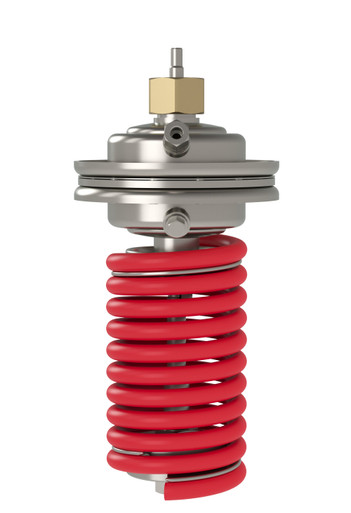

003G1011 Danfoss AFA

003G1011 Danfoss AFA

Original price was: $2,616.55.Current price is: $523.31.

SKU: 003G1011 Category: Tag:

Description

Product details

Gross weight 16 kg
Net weight 16 kg
EAN 5702421808252
Gross weight 16 kg
Net weight 16 kg
EAN 5702421808252



Actuator diaphragm material EPDM (Rolling, fibre enforced)
Actuator size [cm2] 250 mm2
Body material Steel, mat. No 1.0338, zinc plated and yellow chromate
AFA PB25 0,15-1,2 250cm2 silver
Flow control No
Flow limitation No
Function Press. relief controller
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 150 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Bypass
Operating pressure [bar] [Max] 25 bar
Permissible media Circulation water
Pressure controller Pressure relief controller
Pressure nominal [bar] 25 bar
Pressure setting range [bar] [Max] 1.2 bar
Pressure setting range [bar] [Min] 0.15 bar
Product group Actuators – Pressure Flow
Setting type Adjustable
Type AFA
Actuator diaphragm material EPDM (Rolling, fibre enforced)
Actuator size [cm2] 250 mm2
Body material Steel, mat. No 1.0338, zinc plated and yellow chromate
AFA PB25 0,15-1,2 250cm2 silver
Flow control No
Flow limitation No
Function Press. relief controller
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 150 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Bypass
Operating pressure [bar] [Max] 25 bar
Permissible media Circulation water
Pressure controller Pressure relief controller
Pressure nominal [bar] 25 bar
Pressure setting range [bar] [Max] 1.2 bar
Pressure setting range [bar] [Min] 0.15 bar
Product group Actuators – Pressure Flow
Setting type Adjustable
Type AFA

AFA PB25 0,15-1,2 250cm2 silver

Product details

Gross weight 16 kg
Net weight 16 kg
EAN 5702421808252
Gross weight 16 kg
Net weight 16 kg
EAN 5702421808252



Actuator diaphragm material EPDM (Rolling, fibre enforced)
Actuator size [cm2] 250 mm2
Body material Steel, mat. No 1.0338, zinc plated and yellow chromate
AFA PB25 0,15-1,2 250cm2 silver
Flow control No
Flow limitation No
Function Press. relief controller
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 150 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Bypass
Operating pressure [bar] [Max] 25 bar
Permissible media Circulation water
Pressure controller Pressure relief controller
Pressure nominal [bar] 25 bar
Pressure setting range [bar] [Max] 1.2 bar
Pressure setting range [bar] [Min] 0.15 bar
Product group Actuators – Pressure Flow
Setting type Adjustable
Type AFA
Actuator diaphragm material EPDM (Rolling, fibre enforced)
Actuator size [cm2] 250 mm2
Body material Steel, mat. No 1.0338, zinc plated and yellow chromate
AFA PB25 0,15-1,2 250cm2 silver
Flow control No
Flow limitation No
Function Press. relief controller
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 150 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Bypass
Operating pressure [bar] [Max] 25 bar
Permissible media Circulation water
Pressure controller Pressure relief controller
Pressure nominal [bar] 25 bar
Pressure setting range [bar] [Max] 1.2 bar
Pressure setting range [bar] [Min] 0.15 bar
Product group Actuators – Pressure Flow
Setting type Adjustable
Type AFA
