Sale!

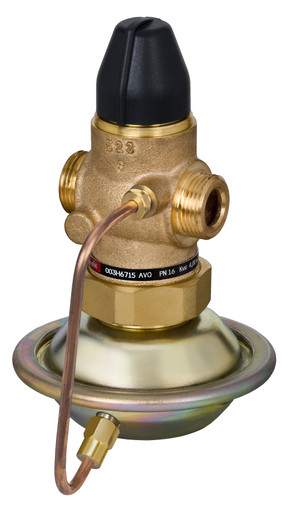

003H6712 Danfoss AVQ

003H6712 Danfoss AVQ

Original price was: $763.51.Current price is: $152.70.

SKU: 003H6712 Category: Tag:

Description

Product details

Gross weight 1.67 kg
Net weight 1.67 kg
EAN 5702421542330
Gross weight 1.67 kg
Net weight 1.67 kg
EAN 5702421542330



Actuator diaphragm material EPDM
Application District Heating
Cavitation factor 0.6
Cavitation factor 100% 0.31
Cavitation factor 25% 0.58
Cavitation factor 50% 0.53
Cavitation factor 75% 0.51
Connection size G 3/4 A
Connection types External Thread
AVQ PN16 15/2,5 /0,2 thread flow/retu
Diameter [mm] 15 mm
Differential pressure range [bar] [Max] 12 bar
Flow control Yes
Flow limitation No
Flow rate [m3/h] 1.8 m3/h
Flow rate [m3/h] [Max] 1.8 m3/h
Flow rate [m3/h] [Min] 0.08 m3/h
Flow restrictor diff.pressure – dpb [bar] 0.2 bar
Function Flow controller
Function VSP – P No
Function VSP – Q Yes
Function VSP – T No
Kvs values [m³/h] 2.5 m3/h
Leakage rate [% Kvs] 0.02
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 150 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 2
Permissible media Circulation water
PN alternative VSP 0
Pressure controller No
Pressure nominal [bar] 16 bar
Product group Pressure flow controllers
Sealing DP material EPDM
Setting type None
Stem position Normally open
Type AVQ
Valve body material Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material Dezincing free brass CuZn36Pb2As
Valve seat material Stainless steel, mat. No. 1.4571
Actuator diaphragm material EPDM
Application District Heating
Cavitation factor 0.6
Cavitation factor 100% 0.31
Cavitation factor 25% 0.58
Cavitation factor 50% 0.53
Cavitation factor 75% 0.51
Connection size G 3/4 A
Connection types External Thread
AVQ PN16 15/2,5 /0,2 thread flow/retu
Diameter [mm] 15 mm
Differential pressure range [bar] [Max] 12 bar
Flow control Yes
Flow limitation No
Flow rate [m3/h] 1.8 m3/h
Flow rate [m3/h] [Max] 1.8 m3/h
Flow rate [m3/h] [Min] 0.08 m3/h
Flow restrictor diff.pressure – dpb [bar] 0.2 bar
Function Flow controller
Function VSP – P No
Function VSP – Q Yes
Function VSP – T No
Kvs values [m³/h] 2.5 m3/h
Leakage rate [% Kvs] 0.02
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 150 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 2
Permissible media Circulation water
PN alternative VSP 0
Pressure controller No
Pressure nominal [bar] 16 bar
Product group Pressure flow controllers
Sealing DP material EPDM
Setting type None
Stem position Normally open
Type AVQ
Valve body material Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material Dezincing free brass CuZn36Pb2As
Valve seat material Stainless steel, mat. No. 1.4571

AVQ PN16 15/2,5 /0,2 thread flow/return

Product details

Gross weight 1.67 kg
Net weight 1.67 kg
EAN 5702421542330
Gross weight 1.67 kg
Net weight 1.67 kg
EAN 5702421542330



Actuator diaphragm material EPDM
Application District Heating
Cavitation factor 0.6
Cavitation factor 100% 0.31
Cavitation factor 25% 0.58
Cavitation factor 50% 0.53
Cavitation factor 75% 0.51
Connection size G 3/4 A
Connection types External Thread
AVQ PN16 15/2,5 /0,2 thread flow/retu
Diameter [mm] 15 mm
Differential pressure range [bar] [Max] 12 bar
Flow control Yes
Flow limitation No
Flow rate [m3/h] 1.8 m3/h
Flow rate [m3/h] [Max] 1.8 m3/h
Flow rate [m3/h] [Min] 0.08 m3/h
Flow restrictor diff.pressure – dpb [bar] 0.2 bar
Function Flow controller
Function VSP – P No
Function VSP – Q Yes
Function VSP – T No
Kvs values [m³/h] 2.5 m3/h
Leakage rate [% Kvs] 0.02
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 150 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 2
Permissible media Circulation water
PN alternative VSP 0
Pressure controller No
Pressure nominal [bar] 16 bar
Product group Pressure flow controllers
Sealing DP material EPDM
Setting type None
Stem position Normally open
Type AVQ
Valve body material Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material Dezincing free brass CuZn36Pb2As
Valve seat material Stainless steel, mat. No. 1.4571
Actuator diaphragm material EPDM
Application District Heating
Cavitation factor 0.6
Cavitation factor 100% 0.31
Cavitation factor 25% 0.58
Cavitation factor 50% 0.53
Cavitation factor 75% 0.51
Connection size G 3/4 A
Connection types External Thread
AVQ PN16 15/2,5 /0,2 thread flow/retu
Diameter [mm] 15 mm
Differential pressure range [bar] [Max] 12 bar
Flow control Yes
Flow limitation No
Flow rate [m3/h] 1.8 m3/h
Flow rate [m3/h] [Max] 1.8 m3/h
Flow rate [m3/h] [Min] 0.08 m3/h
Flow restrictor diff.pressure – dpb [bar] 0.2 bar
Function Flow controller
Function VSP – P No
Function VSP – Q Yes
Function VSP – T No
Kvs values [m³/h] 2.5 m3/h
Leakage rate [% Kvs] 0.02
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 150 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 2
Permissible media Circulation water
PN alternative VSP 0
Pressure controller No
Pressure nominal [bar] 16 bar
Product group Pressure flow controllers
Sealing DP material EPDM
Setting type None
Stem position Normally open
Type AVQ
Valve body material Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material Dezincing free brass CuZn36Pb2As
Valve seat material Stainless steel, mat. No. 1.4571
