Sale!

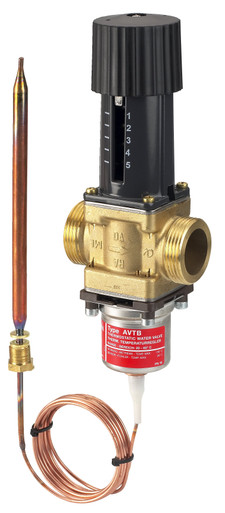

003N5103 Danfoss AVTB

003N5103 Danfoss AVTB

Original price was: $776.90.Current price is: $155.38.

SKU: 003N5103 Category: Tag:

Description

Product details

Gross weight 1.76 kg
Net weight 1.8 kg
EAN 5702421100424
Gross weight 1.76 kg
Net weight 1.8 kg
EAN 5702421100424



Ambient temperature [°C] [Max] 70 °C
Ambient temperature [°C] [Min] 0 °C
Approval standard ETA VA 1.54/18952
Capillary tube length [m] 2 m
Cavitation factor 0.4
Cone /seat sealing material NBR / DZR brass BS 2872 / CZ132
Connection size G 1 1/4 A
Connection standard ISO 228/1
Connection types External Thread
AVTB 25 Thermostatic valve 0-30C
Diameter [mm] 25 mm
Differential pressure range [bar] [Max] 10 bar
Flow characteristic Linear
Flow control No
Function Temp. controller
Function VSP – P No
Function VSP – Q No
Function VSP – T Yes
Impulse tube material Copper mat. No 2.0090
Kvs values [m³/h] 5.5 m3/h
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 130 °C
Media temperature [°C] [Min] 2 °C
Media temperature at sensor [°C] [Max] 55 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 2
Permissible media Circulation water
PN alternative VSP 10
Pressure nominal [bar] 16 bar
Product group Temperature controllers
Rection time close [sec] 15 s
Rection time open [sec] 3 s
Return limiter function No
Sensor connection M22x1 / R3/4 ext thread acc. DIN 2999
Temperature control Yes
Temperature sensor diameter [mm] 18 mm
Temperature sensor length [mm] 210 mm
Temperature sensor material Copper mat. No 2.0090
Temperature setting range [°C] [Max] 30 °C
Temperature setting range [°C] [Min] 0 °C
Time constant [sec] 3 s
Transport temperature [°C] [Max] 50 °C
Transport temperature [°C] [Min] -20 °C
Type AVTB
Valve body material DZR brass BS 2872/CZ132
Valve cone material NBR rubber
Valve seat material Cr Ni steel W.no 1.4301
Ambient temperature [°C] [Max] 70 °C
Ambient temperature [°C] [Min] 0 °C
Approval standard ETA VA 1.54/18952
Capillary tube length [m] 2 m
Cavitation factor 0.4
Cone /seat sealing material NBR / DZR brass BS 2872 / CZ132
Connection size G 1 1/4 A
Connection standard ISO 228/1
Connection types External Thread
AVTB 25 Thermostatic valve 0-30C
Diameter [mm] 25 mm
Differential pressure range [bar] [Max] 10 bar
Flow characteristic Linear
Flow control No
Function Temp. controller
Function VSP – P No
Function VSP – Q No
Function VSP – T Yes
Impulse tube material Copper mat. No 2.0090
Kvs values [m³/h] 5.5 m3/h
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 130 °C
Media temperature [°C] [Min] 2 °C
Media temperature at sensor [°C] [Max] 55 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 2
Permissible media Circulation water
PN alternative VSP 10
Pressure nominal [bar] 16 bar
Product group Temperature controllers
Rection time close [sec] 15 s
Rection time open [sec] 3 s
Return limiter function No
Sensor connection M22x1 / R3/4 ext thread acc. DIN 2999
Temperature control Yes
Temperature sensor diameter [mm] 18 mm
Temperature sensor length [mm] 210 mm
Temperature sensor material Copper mat. No 2.0090
Temperature setting range [°C] [Max] 30 °C
Temperature setting range [°C] [Min] 0 °C
Time constant [sec] 3 s
Transport temperature [°C] [Max] 50 °C
Transport temperature [°C] [Min] -20 °C
Type AVTB
Valve body material DZR brass BS 2872/CZ132
Valve cone material NBR rubber
Valve seat material Cr Ni steel W.no 1.4301

AVTB 25 Thermostatic valve 0-30°C

Product details

Gross weight 1.76 kg
Net weight 1.8 kg
EAN 5702421100424
Gross weight 1.76 kg
Net weight 1.8 kg
EAN 5702421100424



Ambient temperature [°C] [Max] 70 °C
Ambient temperature [°C] [Min] 0 °C
Approval standard ETA VA 1.54/18952
Capillary tube length [m] 2 m
Cavitation factor 0.4
Cone /seat sealing material NBR / DZR brass BS 2872 / CZ132
Connection size G 1 1/4 A
Connection standard ISO 228/1
Connection types External Thread
AVTB 25 Thermostatic valve 0-30C
Diameter [mm] 25 mm
Differential pressure range [bar] [Max] 10 bar
Flow characteristic Linear
Flow control No
Function Temp. controller
Function VSP – P No
Function VSP – Q No
Function VSP – T Yes
Impulse tube material Copper mat. No 2.0090
Kvs values [m³/h] 5.5 m3/h
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 130 °C
Media temperature [°C] [Min] 2 °C
Media temperature at sensor [°C] [Max] 55 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 2
Permissible media Circulation water
PN alternative VSP 10
Pressure nominal [bar] 16 bar
Product group Temperature controllers
Rection time close [sec] 15 s
Rection time open [sec] 3 s
Return limiter function No
Sensor connection M22x1 / R3/4 ext thread acc. DIN 2999
Temperature control Yes
Temperature sensor diameter [mm] 18 mm
Temperature sensor length [mm] 210 mm
Temperature sensor material Copper mat. No 2.0090
Temperature setting range [°C] [Max] 30 °C
Temperature setting range [°C] [Min] 0 °C
Time constant [sec] 3 s
Transport temperature [°C] [Max] 50 °C
Transport temperature [°C] [Min] -20 °C
Type AVTB
Valve body material DZR brass BS 2872/CZ132
Valve cone material NBR rubber
Valve seat material Cr Ni steel W.no 1.4301
Ambient temperature [°C] [Max] 70 °C
Ambient temperature [°C] [Min] 0 °C
Approval standard ETA VA 1.54/18952
Capillary tube length [m] 2 m
Cavitation factor 0.4
Cone /seat sealing material NBR / DZR brass BS 2872 / CZ132
Connection size G 1 1/4 A
Connection standard ISO 228/1
Connection types External Thread
AVTB 25 Thermostatic valve 0-30C
Diameter [mm] 25 mm
Differential pressure range [bar] [Max] 10 bar
Flow characteristic Linear
Flow control No
Function Temp. controller
Function VSP – P No
Function VSP – Q No
Function VSP – T Yes
Impulse tube material Copper mat. No 2.0090
Kvs values [m³/h] 5.5 m3/h
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 130 °C
Media temperature [°C] [Min] 2 °C
Media temperature at sensor [°C] [Max] 55 °C
Medium alternative Glycolic water up to 30%
Mounting version Free
Number of ports 2
Permissible media Circulation water
PN alternative VSP 10
Pressure nominal [bar] 16 bar
Product group Temperature controllers
Rection time close [sec] 15 s
Rection time open [sec] 3 s
Return limiter function No
Sensor connection M22x1 / R3/4 ext thread acc. DIN 2999
Temperature control Yes
Temperature sensor diameter [mm] 18 mm
Temperature sensor length [mm] 210 mm
Temperature sensor material Copper mat. No 2.0090
Temperature setting range [°C] [Max] 30 °C
Temperature setting range [°C] [Min] 0 °C
Time constant [sec] 3 s
Transport temperature [°C] [Max] 50 °C
Transport temperature [°C] [Min] -20 °C
Type AVTB
Valve body material DZR brass BS 2872/CZ132
Valve cone material NBR rubber
Valve seat material Cr Ni steel W.no 1.4301
