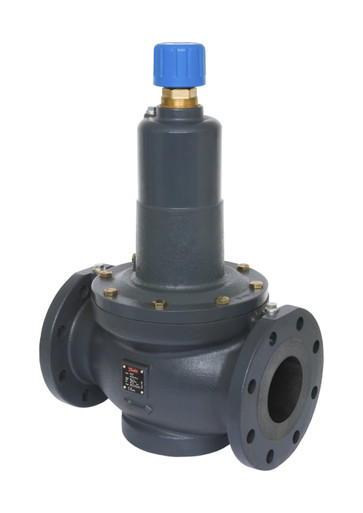

003Z0645 Danfoss ASV-PV 3G

003Z0645 Danfoss ASV-PV 3G

Original price was: $3,242.17.Current price is: $648.43.

SKU: 003Z0645 Category: Tag:

Description

Product details

Gross weight 65.4 kg
Net weight 65.4 kg
EAN 5702421558638
Gross weight 65.4 kg
Net weight 65.4 kg
EAN 5702421558638



Connection types Flange
ASV-PV DN 100, 60-100 kPa, automatic balancing valve
Differential pressure over the valve [kPa] [Max] 250 kPa
Differential pressure setting [kPa] [Max] 100 kPa
Differential pressure setting [kPa] [Min] 60 kPa
Factory setting [kPa] 80 kPa
Impulse tube length [m] 2.5 m
Kvs values [m³/h] 76 m3/h
Media temperature [°C] [Max] 120 °C
Media temperature [°C] [Min] -20 °C
Mounting position Return pipe
Pressure class PN 16
Product group Automatic balancing
Product name ASV-PV DN 100, 60-100 kPa
Shut-off function Yes
Type ASV-PV 3G
Valve body material Grey cast iron (EN-GJL-250)
Valve size DN 100
Connection types Flange
ASV-PV DN 100, 60-100 kPa, automatic balancing valve
Differential pressure over the valve [kPa] [Max] 250 kPa
Differential pressure setting [kPa] [Max] 100 kPa
Differential pressure setting [kPa] [Min] 60 kPa
Factory setting [kPa] 80 kPa
Impulse tube length [m] 2.5 m
Kvs values [m³/h] 76 m3/h
Media temperature [°C] [Max] 120 °C
Media temperature [°C] [Min] -20 °C
Mounting position Return pipe
Pressure class PN 16
Product group Automatic balancing
Product name ASV-PV DN 100, 60-100 kPa
Shut-off function Yes
Type ASV-PV 3G
Valve body material Grey cast iron (EN-GJL-250)
Valve size DN 100

Product name: ASV-PV DN 100, 60-100 kPa

Product details

Gross weight 65.4 kg
Net weight 65.4 kg
EAN 5702421558638
Gross weight 65.4 kg
Net weight 65.4 kg
EAN 5702421558638



Connection types Flange
ASV-PV DN 100, 60-100 kPa, automatic balancing valve
Differential pressure over the valve [kPa] [Max] 250 kPa
Differential pressure setting [kPa] [Max] 100 kPa
Differential pressure setting [kPa] [Min] 60 kPa
Factory setting [kPa] 80 kPa
Impulse tube length [m] 2.5 m
Kvs values [m³/h] 76 m3/h
Media temperature [°C] [Max] 120 °C
Media temperature [°C] [Min] -20 °C
Mounting position Return pipe
Pressure class PN 16
Product group Automatic balancing
Product name ASV-PV DN 100, 60-100 kPa
Shut-off function Yes
Type ASV-PV 3G
Valve body material Grey cast iron (EN-GJL-250)
Valve size DN 100
Connection types Flange
ASV-PV DN 100, 60-100 kPa, automatic balancing valve
Differential pressure over the valve [kPa] [Max] 250 kPa
Differential pressure setting [kPa] [Max] 100 kPa
Differential pressure setting [kPa] [Min] 60 kPa
Factory setting [kPa] 80 kPa
Impulse tube length [m] 2.5 m
Kvs values [m³/h] 76 m3/h
Media temperature [°C] [Max] 120 °C
Media temperature [°C] [Min] -20 °C
Mounting position Return pipe
Pressure class PN 16
Product group Automatic balancing
Product name ASV-PV DN 100, 60-100 kPa
Shut-off function Yes
Type ASV-PV 3G
Valve body material Grey cast iron (EN-GJL-250)
Valve size DN 100
