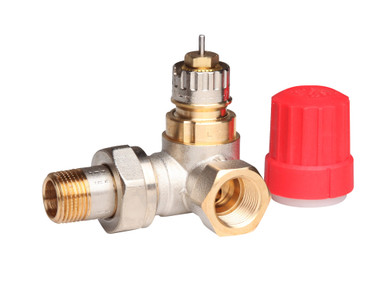

013G0231 Danfoss RA-N (Normal flow valves)

013G0231 Danfoss RA-N (Normal flow valves)

Original price was: $38.43.Current price is: $11.53.

SKU: 013G0231 Category: Tag:

Description

Product details

Gross weight 0.24 kg
Net weight 0.23 kg
EAN 5702420014739
Gross weight 0.24 kg
Net weight 0.23 kg
EAN 5702420014739



Connection size in Rp 3/8
Connection size out R 3/8
Differential pressure range [bar] [Max] 0.6 bar
Dimension 10
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 – 0.5
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.08 m3/h
Kv value at setting 3 [m³/h] 0.12 m3/h
Kv value at setting 4 [m³/h] 0.19 m3/h
Kv value at setting 5 [m³/h] 0.25 m3/h
Kv value at setting 6 [m³/h] 0.33 m3/h
Kv value at setting 7 [m³/h] 0.38 m3/h
Kv value at setting N [m³/h] 0.56 m3/h
Kvs values [m³/h] 0.65 m3/h
Presetting yes
Product group Radiator Valves
Quantity per packing format 54 pc
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar
Connection size in Rp 3/8
Connection size out R 3/8
Differential pressure range [bar] [Max] 0.6 bar
Dimension 10
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 – 0.5
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.08 m3/h
Kv value at setting 3 [m³/h] 0.12 m3/h
Kv value at setting 4 [m³/h] 0.19 m3/h
Kv value at setting 5 [m³/h] 0.25 m3/h
Kv value at setting 6 [m³/h] 0.33 m3/h
Kv value at setting 7 [m³/h] 0.38 m3/h
Kv value at setting N [m³/h] 0.56 m3/h
Kvs values [m³/h] 0.65 m3/h
Presetting yes
Product group Radiator Valves
Quantity per packing format 54 pc
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar

VALVE BODY RIGHT MOUNTED

Product details

Gross weight 0.24 kg
Net weight 0.23 kg
EAN 5702420014739
Gross weight 0.24 kg
Net weight 0.23 kg
EAN 5702420014739



Connection size in Rp 3/8
Connection size out R 3/8
Differential pressure range [bar] [Max] 0.6 bar
Dimension 10
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 – 0.5
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.08 m3/h
Kv value at setting 3 [m³/h] 0.12 m3/h
Kv value at setting 4 [m³/h] 0.19 m3/h
Kv value at setting 5 [m³/h] 0.25 m3/h
Kv value at setting 6 [m³/h] 0.33 m3/h
Kv value at setting 7 [m³/h] 0.38 m3/h
Kv value at setting N [m³/h] 0.56 m3/h
Kvs values [m³/h] 0.65 m3/h
Presetting yes
Product group Radiator Valves
Quantity per packing format 54 pc
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar
Connection size in Rp 3/8
Connection size out R 3/8
Differential pressure range [bar] [Max] 0.6 bar
Dimension 10
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 – 0.5
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.08 m3/h
Kv value at setting 3 [m³/h] 0.12 m3/h
Kv value at setting 4 [m³/h] 0.19 m3/h
Kv value at setting 5 [m³/h] 0.25 m3/h
Kv value at setting 6 [m³/h] 0.33 m3/h
Kv value at setting 7 [m³/h] 0.38 m3/h
Kv value at setting N [m³/h] 0.56 m3/h
Kvs values [m³/h] 0.65 m3/h
Presetting yes
Product group Radiator Valves
Quantity per packing format 54 pc
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar
