Description
Product details
| Gross weight | 0.43 kg |
| Net weight | 0.43 kg |
| EAN | 5702420031804 |
| Gross weight | 0.43 kg |
| Net weight | 0.43 kg |
| EAN | 5702420031804 |
| Connection size in | G 3/4 A |
| Connection size out | R 1/2 |
| RA-KE, RTD-KE Manifold valve | |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [psi] [Max] | 1 psi |
| Flow temperature [°C] [Max] | 120 °C |
| Product group | Manifold Assemblies |
| Quantity per packing format | 60 pc |
| Test pressure [bar] | 16 bar |
| Type | RA-KE/KEW, RTD-KE (for one-pipe systems) |
| Working pressure [bar] [Max] | 10 bar |
| Connection size in | G 3/4 A |
| Connection size out | R 1/2 |
| RA-KE, RTD-KE Manifold valve | |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [psi] [Max] | 1 psi |
| Flow temperature [°C] [Max] | 120 °C |
| Product group | Manifold Assemblies |
| Quantity per packing format | 60 pc |
| Test pressure [bar] | 16 bar |
| Type | RA-KE/KEW, RTD-KE (for one-pipe systems) |
| Working pressure [bar] [Max] | 10 bar |

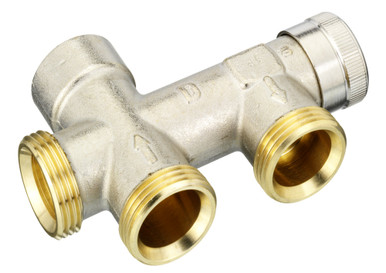

RA-KE Coupling f. floor connection
Product details
| Gross weight | 0.43 kg |
| Net weight | 0.43 kg |
| EAN | 5702420031804 |
| Gross weight | 0.43 kg |
| Net weight | 0.43 kg |
| EAN | 5702420031804 |
| Connection size in | G 3/4 A |
| Connection size out | R 1/2 |
| RA-KE, RTD-KE Manifold valve | |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [psi] [Max] | 1 psi |
| Flow temperature [°C] [Max] | 120 °C |
| Product group | Manifold Assemblies |
| Quantity per packing format | 60 pc |
| Test pressure [bar] | 16 bar |
| Type | RA-KE/KEW, RTD-KE (for one-pipe systems) |
| Working pressure [bar] [Max] | 10 bar |
| Connection size in | G 3/4 A |
| Connection size out | R 1/2 |
| RA-KE, RTD-KE Manifold valve | |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [psi] [Max] | 1 psi |
| Flow temperature [°C] [Max] | 120 °C |
| Product group | Manifold Assemblies |
| Quantity per packing format | 60 pc |
| Test pressure [bar] | 16 bar |
| Type | RA-KE/KEW, RTD-KE (for one-pipe systems) |
| Working pressure [bar] [Max] | 10 bar |
