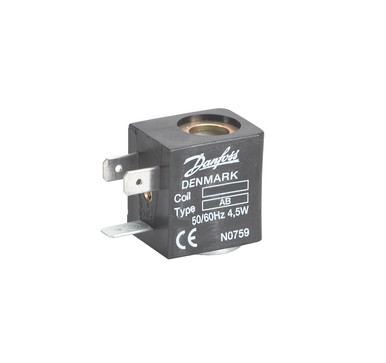

042N0801 Danfoss Solenoid coil, AB240C

042N0801 Danfoss Solenoid coil, AB240C

Original price was: $23.28.Current price is: $6.98.

SKU: 042N0801 Category: Tag:

Description

Product details

Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702423049769
Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702423049769



Actuator size 9 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Coil fastening Finger screw
Colour Black
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Parts Program name EV210A
EV220A
EV310A
Power consumption [W] 4.5 W
Power consumption [W] 50Hz 4.5 W
Power consumption [W] 60Hz 4.5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 24 pc
Serviceable No
Supply voltage 50Hz Max [V] 240 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage [V] a.c. 240 V
Supply voltage [V] AC 240 V
Type AB240C
Type designation AB240C
Actuator size 9 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Coil fastening Finger screw
Colour Black
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Parts Program name EV210A
EV220A
EV310A
Power consumption [W] 4.5 W
Power consumption [W] 50Hz 4.5 W
Power consumption [W] 60Hz 4.5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 24 pc
Serviceable No
Supply voltage 50Hz Max [V] 240 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage [V] a.c. 240 V
Supply voltage [V] AC 240 V
Type AB240C
Type designation AB240C

Product name: Solenoid coil, Type: AB240C, Supply voltage [V] AC: 240, Enclosure rating IP: IP00, Coil connection: DIN Spade, Actuator size: 9 mm

Product details

Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702423049769
Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702423049769



Actuator size 9 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Coil fastening Finger screw
Colour Black
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Parts Program name EV210A
EV220A
EV310A
Power consumption [W] 4.5 W
Power consumption [W] 50Hz 4.5 W
Power consumption [W] 60Hz 4.5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 24 pc
Serviceable No
Supply voltage 50Hz Max [V] 240 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage [V] a.c. 240 V
Supply voltage [V] AC 240 V
Type AB240C
Type designation AB240C
Actuator size 9 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Coil fastening Finger screw
Colour Black
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Parts Program name EV210A
EV220A
EV310A
Power consumption [W] 4.5 W
Power consumption [W] 50Hz 4.5 W
Power consumption [W] 60Hz 4.5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 24 pc
Serviceable No
Supply voltage 50Hz Max [V] 240 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage [V] a.c. 240 V
Supply voltage [V] AC 240 V
Type AB240C
Type designation AB240C
