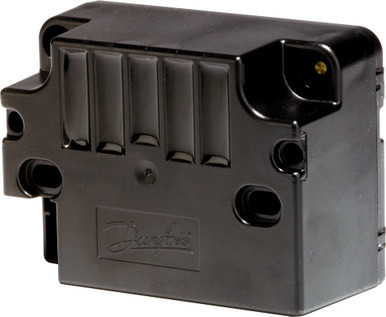

052F4048 Danfoss Ignition Units, EBI4 C1P S, Secondary peak voltage [kV]: 12, 187.0 V - 255.0 V, 60.0 VA, Standard Housing

052F4048 Danfoss Ignition Units, EBI4 C1P S, Secondary peak voltage [kV]: 12, 187.0 V – 255.0 V, 60.0 VA, Standard Housing

Original price was: $172.52.Current price is: $43.13.

SKU: 052F4048 Category: Tag:

Description

Product details

Gross weight 0.34 kg
Net weight 0.34 kg
EAN 5702425078156
Gross weight 0.34 kg
Net weight 0.34 kg
EAN 5702425078156



Ambient temperature [°C] [Max] 60 °C
Ambient temperature [°C] [Min] -10 °C
EBI4 SERVICE 4
Grade of enclosure primary IP40
Housing Standard
Main fuse [A] [Min] 10 A
Packing format Single pack
Power consumption [VA] 60 VA
Primary current [A] 0.25 A
Primary frequency [Hz] 50/60
Product group Ignition Units
Quantity per packing format 10 pc
Secondary connection, short circuit current [mA] 40 mA
Secondary peak voltage [kV] 12
Storage temperature [°C] [Max] 85 °C
Storage temperature [°C] [Min] -25 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 255 V
Supply voltage range [V] AC [Min] 187 V
Type EBI4 C1P S
Ambient temperature [°C] [Max] 60 °C
Ambient temperature [°C] [Min] -10 °C
EBI4 SERVICE 4
Grade of enclosure primary IP40
Housing Standard
Main fuse [A] [Min] 10 A
Packing format Single pack
Power consumption [VA] 60 VA
Primary current [A] 0.25 A
Primary frequency [Hz] 50/60
Product group Ignition Units
Quantity per packing format 10 pc
Secondary connection, short circuit current [mA] 40 mA
Secondary peak voltage [kV] 12
Storage temperature [°C] [Max] 85 °C
Storage temperature [°C] [Min] -25 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 255 V
Supply voltage range [V] AC [Min] 187 V
Type EBI4 C1P S

EBI4 SERVICE 4

Product details

Gross weight 0.34 kg
Net weight 0.34 kg
EAN 5702425078156
Gross weight 0.34 kg
Net weight 0.34 kg
EAN 5702425078156



Ambient temperature [°C] [Max] 60 °C
Ambient temperature [°C] [Min] -10 °C
EBI4 SERVICE 4
Grade of enclosure primary IP40
Housing Standard
Main fuse [A] [Min] 10 A
Packing format Single pack
Power consumption [VA] 60 VA
Primary current [A] 0.25 A
Primary frequency [Hz] 50/60
Product group Ignition Units
Quantity per packing format 10 pc
Secondary connection, short circuit current [mA] 40 mA
Secondary peak voltage [kV] 12
Storage temperature [°C] [Max] 85 °C
Storage temperature [°C] [Min] -25 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 255 V
Supply voltage range [V] AC [Min] 187 V
Type EBI4 C1P S
Ambient temperature [°C] [Max] 60 °C
Ambient temperature [°C] [Min] -10 °C
EBI4 SERVICE 4
Grade of enclosure primary IP40
Housing Standard
Main fuse [A] [Min] 10 A
Packing format Single pack
Power consumption [VA] 60 VA
Primary current [A] 0.25 A
Primary frequency [Hz] 50/60
Product group Ignition Units
Quantity per packing format 10 pc
Secondary connection, short circuit current [mA] 40 mA
Secondary peak voltage [kV] 12
Storage temperature [°C] [Max] 85 °C
Storage temperature [°C] [Min] -25 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 255 V
Supply voltage range [V] AC [Min] 187 V
Type EBI4 C1P S
