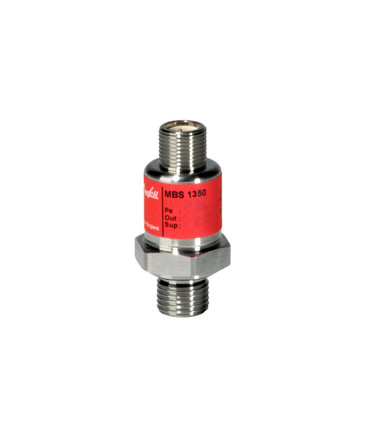

063G1306 Danfoss Pressure transmitter, MBS 1350

063G1306 Danfoss Pressure transmitter, MBS 1350

Original price was: $264.74.Current price is: $66.19.

SKU: 063G1306 Category: Tag:

Description

Product details

Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423255610
Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423255610



+ output Pin 2
+ supply Pin 1
– common Pin 3
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 4000 bar
Burst pressure [psig] 58000 psig
Comments OUTPUT 2: PIN 4
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Au coated
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Voltage
Output signal [V] [Max] 6 V
Output signal [V] [Min] 1 V
Overload pressure max. [bar] 1200 bar
Overload pressure max. [psig] 17000 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 400 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 5801.51 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1350-3614-C1GB04-2
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1350
+ output Pin 2
+ supply Pin 1
– common Pin 3
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 4000 bar
Burst pressure [psig] 58000 psig
Comments OUTPUT 2: PIN 4
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Au coated
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Voltage
Output signal [V] [Max] 6 V
Output signal [V] [Min] 1 V
Overload pressure max. [bar] 1200 bar
Overload pressure max. [psig] 17000 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 400 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 5801.51 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1350-3614-C1GB04-2
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1350

Product name: Pressure transmitter, Type: MBS 1350, Pressure range [psi]: 0.00 – 5801.51, Pressure range [bar]: 0.00 – 400.00, Pressure connection size: 1/4, Pressure connection type: G, Output signal [V]: 1.0000 – 6.0000, Electrical connection size: 4 pin, Electrical connection: M12 x 1

Product details

Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423255610
Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423255610



+ output Pin 2
+ supply Pin 1
– common Pin 3
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 4000 bar
Burst pressure [psig] 58000 psig
Comments OUTPUT 2: PIN 4
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Au coated
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Voltage
Output signal [V] [Max] 6 V
Output signal [V] [Min] 1 V
Overload pressure max. [bar] 1200 bar
Overload pressure max. [psig] 17000 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 400 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 5801.51 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1350-3614-C1GB04-2
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1350
+ output Pin 2
+ supply Pin 1
– common Pin 3
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 4000 bar
Burst pressure [psig] 58000 psig
Comments OUTPUT 2: PIN 4
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Au coated
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Voltage
Output signal [V] [Max] 6 V
Output signal [V] [Min] 1 V
Overload pressure max. [bar] 1200 bar
Overload pressure max. [psig] 17000 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 400 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 5801.51 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1350-3614-C1GB04-2
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1350
