Description
Product details
| Gross weight |
0.95 kg |
| Net weight |
0.95 kg |
| Gross weight |
0.95 kg |
| Net weight |
0.95 kg |
| EAN |
5702421656709 |
| Ambient temperature [°C] [Min] |
-40 °C |
| Application |
Heating and cooling |
| Approval standard |
EN 12266 part 1 P10-P11-P12 & part 2 F20
PED Directive 97/23/EEC Modul H1 |
| Body material |
Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Cone /seat sealing material |
PTFE+C |
| Connection material |
Copper |
| Connection types |
Copper |
|
JIP-CC DN 20 PN16 L hi 22 |
| Diameter [mm] |
20 mm |
| Differential pressure range [bar] [Max] |
16 bar |
| Function |
On/off |
| Kvs values [m³/h] |
15 m3/h |
| Leakage rate [% Kvs] |
Leakage rate A |
| Length [mm] |
255 mm |
| Manufacturer’s name |
Danfoss |
| Media pH [Max] |
9 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
130 °C |
| Media temperature [°C] [Min] |
0 °C |
| Medium alternative |
Glycolic water up to 50% |
| Mounting orientation |
All |
| Number of ports |
2 |
| Operation type |
Handle |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
16 bar |
| Product group |
Ball valves |
| Rotation angle [°] |
90 ° |
| Stem sealing material |
PTFE/Graphite |
| Storage temperature [°C] [Min] |
-40 °C |
| Type |
JIP-CC |
| Valve ball material |
Stainless steel |
| Valve body material |
Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Valve stem material |
Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
| Valve type |
Reduced Bore |
| Welding ends material |
Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Ambient temperature [°C] [Min] |
-40 °C |
| Application |
Heating and cooling |
| Approval standard |
EN 12266 part 1 P10-P11-P12 & part 2 F20
PED Directive 97/23/EEC Modul H1 |
| Body material |
Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Cone /seat sealing material |
PTFE+C |
| Connection material |
Copper |
| Connection types |
Copper |
|
JIP-CC DN 20 PN16 L hi 22 |
| Diameter [mm] |
20 mm |
| Differential pressure range [bar] [Max] |
16 bar |
| Function |
On/off |
| Kvs values [m³/h] |
15 m3/h |
| Leakage rate [% Kvs] |
Leakage rate A |
| Length [mm] |
255 mm |
| Manufacturer’s name |
Danfoss |
| Media pH [Max] |
9 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
130 °C |
| Media temperature [°C] [Min] |
0 °C |
| Medium alternative |
Glycolic water up to 50% |
| Mounting orientation |
All |
| Number of ports |
2 |
| Operation type |
Handle |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
16 bar |
| Product group |
Ball valves |
| Rotation angle [°] |
90 ° |
| Stem sealing material |
PTFE/Graphite |
| Storage temperature [°C] [Min] |
-40 °C |
| Type |
JIP-CC |
| Valve ball material |
Stainless steel |
| Valve body material |
Weldable steel* e.g. P235GH / Mat. no. 1.0345 |
| Valve stem material |
Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
| Valve type |
Reduced Bore |
| Welding ends material |
Weldable steel* e.g. P235GH / Mat. no. 1.0345 |

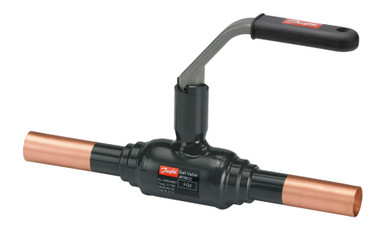

JIP-CC DN 20 PN16 L hi Ø22
