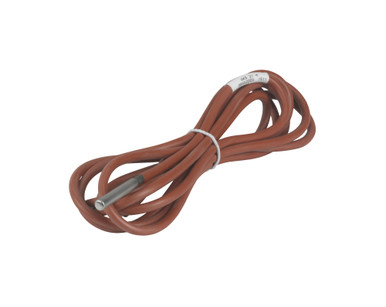

084N2007 Danfoss Temperature sensor, AKS 21 A

Description

Product details

Gross weight	0.11 kg
Net weight	0.11 kg

EAN	5702422053705

Gross weight	0.11 kg
Net weight	0.11 kg
EAN	5702422053705



Ambient temperature max. [°C]	180 °C
Ambient temperature max. [°F]	356 °F
Cable length [in]	98.43 in
Cable length [m]	2.5 m
Cable tempr. range [°C] [Max]	200 °C
Cable tempr. range [°C] [Min]	-60 °C
Cable type	Silicone
Electrical connection	Cable
Electrical connection size	2 wire
Measuring range [°C] [Max]	180 °C
Measuring range [°C] [Min]	-70 °C
Measuring range [°F] [Max]	356 °F
Measuring range [°F] [Min]	-94 °F
Packing format	Multi pack
Product family name	AKS
Product group	Sensors

Product name	Temperature sensor
Protection tube diameter [in]	0.23 in
Protection tube diameter [mm]	5.8 mm
Protection tube length [in]	1.58 in
Protection tube length [mm]	40 mm
Protection tube material	Stainless steel
Quantity per packing format	36 pc
Sensor elem. resistance [Ohm]	1000 Ohm
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Fixed
Type	AKS 21 A
Wires [pcs]	2 pc

Ambient temperature max. [°C]	180 °C
Ambient temperature max. [°F]	356 °F
Cable length [in]	98.43 in
Cable length [m]	2.5 m
Cable tempr. range [°C] [Max]	200 °C
Cable tempr. range [°C] [Min]	-60 °C
Cable type	Silicone
Electrical connection	Cable
Electrical connection size	2 wire
Measuring range [°C] [Max]	180 °C
Measuring range [°C] [Min]	-70 °C
Measuring range [°F] [Max]	356 °F
Measuring range [°F] [Min]	-94 °F
Packing format	Multi pack
Product family name	AKS
Product group	Sensors
Product name	Temperature sensor
Protection tube diameter [in]	0.23 in
Protection tube diameter [mm]	5.8 mm
Protection tube length [in]	1.58 in
Protection tube length [mm]	40 mm
Protection tube material	Stainless steel
Quantity per packing format	36 pc
Sensor elem. resistance [Ohm]	1000 Ohm
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Fixed
Type	AKS 21 A
Wires [pcs]	2 pc

Product name: Temperature sensor, Type: AKS 21 A, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Electrical connection size: 2 wire, Electrical connection: Cable
