Sale!

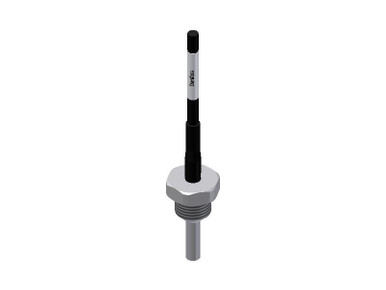

084Z7119 Danfoss Temperature sensor, MBT 3270

084Z7119 Danfoss Temperature sensor, MBT 3270

Original price was: $203.44.Current price is: $50.86.

SKU: 084Z7119 Category: Tag:

Description

Product details

Gross weight 0.12 kg
Net weight 0.1 kg
EAN 5702423186679
Gross weight 0.12 kg
Net weight 0.1 kg
EAN 5702423186679



Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Cable length [in] 78.74 in
Cable length [m] 2 m
Cable tempr. range [°C] [Max] 200 °C
Cable tempr. range [°C] [Min] -60 °C
Cable tempr. range [°F] [Max] 392 °F
Cable tempr. range [°F] [Min] -76 °F
Cable type Silicone
Connection material AISI 316 Ti
Connection type M
Electrical connection Cable
Electrical connection size 2 wire
Enclosure rating IP IP54
Insertion length [in] 1.38 in
Insertion length [mm] 35 mm
Insertion type Fixed
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections M16x1.5 , ISO 965
Product Group Sight glasses
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.26 in
Protection tube diameter [mm] 6.5 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Fixed
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 3270
Type designation MBT 3270-12001-035-50001-200
Wires [pcs] 2 pc
Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Cable length [in] 78.74 in
Cable length [m] 2 m
Cable tempr. range [°C] [Max] 200 °C
Cable tempr. range [°C] [Min] -60 °C
Cable tempr. range [°F] [Max] 392 °F
Cable tempr. range [°F] [Min] -76 °F
Cable type Silicone
Connection material AISI 316 Ti
Connection type M
Electrical connection Cable
Electrical connection size 2 wire
Enclosure rating IP IP54
Insertion length [in] 1.38 in
Insertion length [mm] 35 mm
Insertion type Fixed
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections M16x1.5 , ISO 965
Product Group Sight glasses
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.26 in
Protection tube diameter [mm] 6.5 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Fixed
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 3270
Type designation MBT 3270-12001-035-50001-200
Wires [pcs] 2 pc

Process Connections: M16x1.5 , ISO 965, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 200, Insertion length [mm]: 35, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Protection tube material: AISI 316 Ti, Electrical connection: Cable, Electrical connection size: 2 wire

Product details

Gross weight 0.12 kg
Net weight 0.1 kg
EAN 5702423186679
Gross weight 0.12 kg
Net weight 0.1 kg
EAN 5702423186679



Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Cable length [in] 78.74 in
Cable length [m] 2 m
Cable tempr. range [°C] [Max] 200 °C
Cable tempr. range [°C] [Min] -60 °C
Cable tempr. range [°F] [Max] 392 °F
Cable tempr. range [°F] [Min] -76 °F
Cable type Silicone
Connection material AISI 316 Ti
Connection type M
Electrical connection Cable
Electrical connection size 2 wire
Enclosure rating IP IP54
Insertion length [in] 1.38 in
Insertion length [mm] 35 mm
Insertion type Fixed
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections M16x1.5 , ISO 965
Product Group Sight glasses
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.26 in
Protection tube diameter [mm] 6.5 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Fixed
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 3270
Type designation MBT 3270-12001-035-50001-200
Wires [pcs] 2 pc
Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Cable length [in] 78.74 in
Cable length [m] 2 m
Cable tempr. range [°C] [Max] 200 °C
Cable tempr. range [°C] [Min] -60 °C
Cable tempr. range [°F] [Max] 392 °F
Cable tempr. range [°F] [Min] -76 °F
Cable type Silicone
Connection material AISI 316 Ti
Connection type M
Electrical connection Cable
Electrical connection size 2 wire
Enclosure rating IP IP54
Insertion length [in] 1.38 in
Insertion length [mm] 35 mm
Insertion type Fixed
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections M16x1.5 , ISO 965
Product Group Sight glasses
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.26 in
Protection tube diameter [mm] 6.5 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Fixed
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 3270
Type designation MBT 3270-12001-035-50001-200
Wires [pcs] 2 pc
