Description

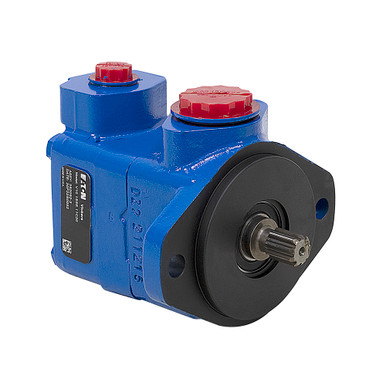

1.0 CU IN EATON VICKERS V101S5S11C20 VANE PUMP
New, Eaton Vickers V101S5S11C20 vane pump.
SPECIFICATIONS
- Manufacturer Eaton Vickers
- Model V101S5S11C20
- Disp. 1.0 cu. in. / rev.
- Pump Type Vane
- Rotation CW
- Pressure: 2500 PSI max.
- Speed:
650 RPM min.
3200 RPM max. - Flow:
5 GPM @ 1200 RPM
6.25 GPM @ 1500 RPM - Mount Two bolt SAE A
- Shaft 5/8″ dia. x 3/4″ long 9T spline
- Inlet Port SAE 16
- Outlet Port SAE 8
- Size 6″ x 5-1/8″ x 4-1/4″
- Shpg. 14 lbs.
