Description

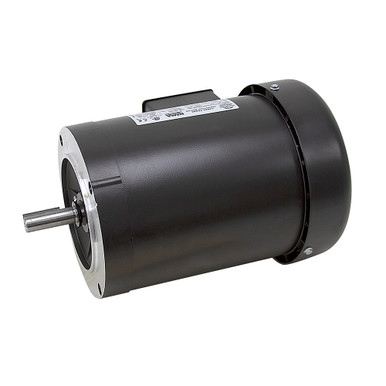

1-1/2 HP 3500 RPM 3 PHASE 230/460 VOLT AC BASE MOUNT MOTOR
Brand new, WORLDWIDE NATE1.5-36-56CRD, general purpose 3-phase motor for use in blowers, pumps, conveyors, and many other diverse applications. Totally Enclosed Fan Cooled (TEFC) enclosures.
SPECIFICATIONS
- Brand Worldwide
- Model Number NATE1.5-36-56CRD
- Power 1-1/2 HP
- Voltage 230/460 AC
- Phase 3
- Frequency 60 Hz
- Amperage 3.96/1.98 Amps
- Speed 3500 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection None
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Base Mount Six 1-1/4″ x 5/16″ elliptical slots on 2″ to 5″ x 4-7/8″ to 5-7/8″ centers
- Shaft 5/8″ dia. x 1-7/8″ overall length w/ 3/16″ wide x 1-3/4″ long keyway
- Size 11.375″ x 8.75″ x 7″
- Shpg. 33 lbs.
