1.21 cu in Dynamic BMM20UBU Hydraulic Motor

Description

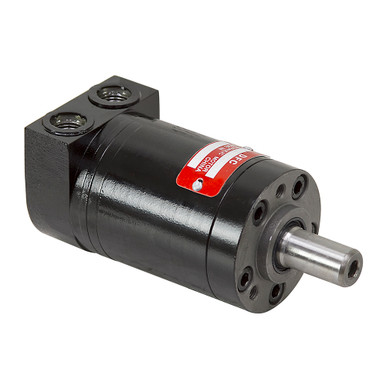

1.21 cu in Dynamic BMM-20-U-B-U HYDRAULIC MOTOR
Brand new, DYNAMIC BMM series hydraulic motor. Compact frame with Rototorc gear set to provide highly efficient low speed high torque output for limited space applications. Can be used in parallel or series hydraulic systems.

SPECIFICATIONS

• Brand Dynamic
• Model Number 61510Z
• Build Number BMM-20-U-B-U
• Family BMM Series
• Displacement 1.21 cu. in. / rev.
• Motor Type Rototorc
• Rotation Reversible
• Pressure:
     1450 PSI cont.
     2030 PSI int.
• Torque:
     221 in-lbs. cont.
     310 in-lbs. int.
• Speed:
     1000 RPM cont.
     1250 RPM int.
• Flow:
     5.28 GPM cont.
     6.6 GPM int.
• Mount 3 bolt tapped with 1/4″-28 on 1.77″ bolt circle
• Pilot Mount Size 1.24″
• Shaft 5/8″ dia. x 1.44″ long w/ 3/16″ keyway
• Ports SAE 6
• Case Drain SAE 3
• Size 4.29″ x 2.36″ x 2.52″
• Shpg. 9 lbs.
