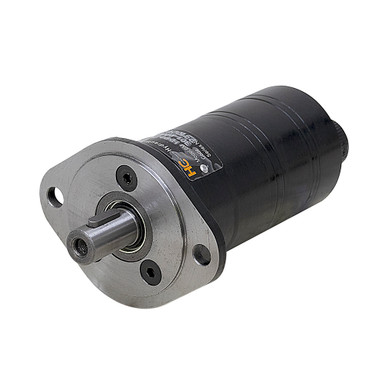

1.22 cu in Hydraulic Motor Hydro Custom BMM-ADCBBAA

Description

0.48 cu in HYDRO CUSTOM BMM-ADCBBAA HYDRAULIC MOTOR
Brand new Hydro Custom BMM series hydraulic motor. Interchangeable with Char-Lynn J series. Gerolor power element.
SPECIFICATIONS

• Brand Hydro Custom
• Model BMM-ADCBBAA
• Manufacturer Part Number CUM 301-0062E
• Displacement 1.22 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    1450 PSI cont.
    2030 PSI int.
• Torque
    221 in-lbs. cont.
    309 in-lbs. int.
• Speed
    1000 RPM cont.
    1250 RPM int.
• Flow
    5.2 GPM cont.
    6.6 GPM int.
• Mount Two 0.35″ bolt holes on 3.150″ centers, 2.48″ O.D. pilot
• Shaft 5/8″ x 1.102″ long Keyed, w/0.188″ parallel key, end tapped 1/4″-28
• Ports SAE 6, rear
• Case Drain SAE 3, rear
• Size 6.04″ x 2.362″ x 2.44″
• Shpg. 6 lbs.
