Description

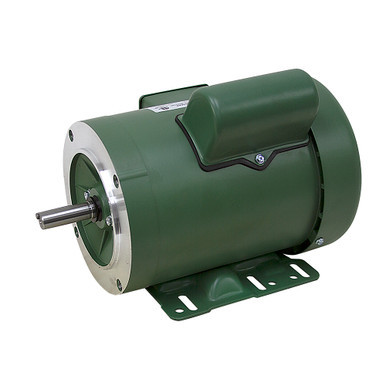

1/3 HP 1725 RPM 115/230 VOLT AC BASE AND FACE MOUNT MOTOR
Brand new, WORLDWIDE FM13-18-56C, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/Induction run motor for reduced amperage and high torque. Manual thermal overload protection.
SPECIFICATIONS
- Power 1/3 HP
- Voltage 115/230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 5.2/2.6 Amps
- Speed 1725 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Base Mount Six 1-1/4″ x 5/16″ elliptical slots on 2″ to 5″ x 4-7/8″ to 5-7/8″ centers
- Face Mount Four 3/8″-16 threaded holes on 5-7/8″ B.C., 4-1/2″ pilot
- Shaft 5/8″ dia. x 1-7/8″ overall length w/ 3/16″ wide x 1-3/4″ long keyway
- Size 11.5″ x 8.75″ x 8″
- Shpg. 29 lbs.
