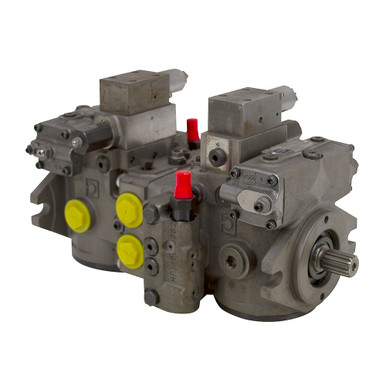

1.46/1.16 cu. in. Tandem Closed Circuit Variable Displacement Piston Pump Bondioli & Pavesi M4PV28-24OSGAR3BUJ-502/M4PV21-19OYDAL0BUJ-503

Description

1.46/1.16 CU IN TANDEM VARIABLE DISPLACEMENT AXIAL PISTON PUMP
New, BONDIOLI & PAVESI tandem closed circuit variable displacement axial piston pumps. Electric proportional feedback control. Features include cast iron body, swash plate mounted on needle bearings, built-in bypass reliefs, and bypass valve for free-wheeling equipment. Front pump has booster pump.

SPECIFICATIONS

• Brand Bondioli & Pavesi
• Front Piston Pump
• Model M4PV28-24OSGAR3BUJ-502
• Displacement 1.46 cu. in. / rev. (24cc / rev.)
• Pressure:
    3335 PSI (230 BAR) cont.
    3625 PSI (250 BAR) int.
    5076 PSI (350 BAR) peak
• Ports SAE 12
• Boost Pump
• Displacement 0.74 cu. in. / rev. (12cc / rev.)
• Pressure:
    319 PSI (22 BAR) cont.
• Rear Piston Pump
• Model M4PV21-19OYDAL0BUJ-503
• Displacement 1.16 cu.in./rev. (19cc / rev.)
• Pressure:
    2320 PSI (160 BAR) cont.
    2610 PSI (180 BAR) int.
    5076 PSI (350 BAR) peak
• Ports SAE 12
• Electric Proportional Feedback Control
• Solenoid Voltage 12 VDC
• Solenoid min. Current 300 mA
• Solenoid max Current 1500 mA
• PWM Frequency 100 Hz
• Rotation CW
• Speed:
    500 RPM min.
    3600 RPM max.
• Mount Two-bolt SAE B
• Shaft 25mm dia. 15 tooth spline 16/32 DP x 1-13/16″ long w/M8-1.25 tapped end
• Rqd. Filtration 10 Micron
• Size 14.75″ x 9.5″ x 9.25″
• Shpg. 145 lbs.
