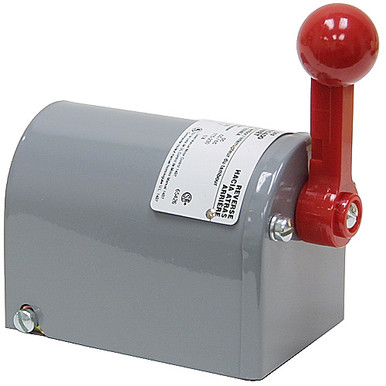

REVERSING DRUM SWITCH SINGLE-PHASE ONLY
Brand new, drum type reversing switch. Double-pole, double-throw, spring returned to center off position. Heavy duty copper contacts, painted metal housing. For use with single-phase circuits only. UL and CSA listed.
SPECIFICATIONS
- Brand Relay & Control Corp.
- Model RS-1M
- Contact style DPDT-CO
- Contact Ratings
1.5 HP @ 115 VAC
2 HP @ 230 VAC - Lever motion 3 position,momentary
- Mount 2 bolts on base, 1-5/8″ c/c
- Size 2-1/4″ x 4″ x 4-1/2″
- Shpg. 2 lbs.
