Description

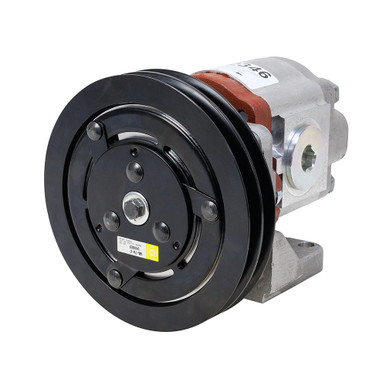

HYDRAULIC CLUTCH PUMP
Brand new, Bailey 252346 hydraulic clutch pump with 7″ double groove V-belt pulley. Aluminum pump body. Compact design featuring double shaft seals, rear, and side ports (side ports with steel plugs). Assembly features Salami 2.5PB-25 gear pump, Ogura MA-7A-C electromagnetic mobile clutch and Hydra Mount aluminum foot mount.
SPECIFICATIONS
- Brand Bailey
- Part Number 252346
- Clutch Pulley Two, A groove 7″ dia.
- Clutch Static Torque 90 ft. lbs.
- Clutch Power 12 Volt DC, 47 Watt, 3.9 Amps
- Pump Displacement 1.53 cu. in. / rev.
- Pump Type Gear
- Rotation CW
- Pressure 3625 PSI
- Speed 500-3000 RPM
- Flow 13.2 GPM @ 2000 RPM
- Mount Four 0.5″ diam. holes on 4″ x 2″ centers
- Inlet Port SAE 20
- Outlet Port SAE 12
- Size 7-1/2″ x 7″ x 7″
- Shpg. 27 lbs.
