Description

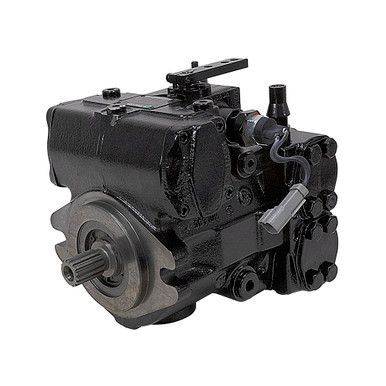

1.7 CU IN REXROTH A4VG28HWDL1/32R-NSC10N005E-S VARIABLE AXIAL PISTON PUMP
New, Rexroth A4VG28HWDL1/32R-NSC10N005E-S variable axial piston pump. Proportional control hydraulic mechanical servo with pressure cut-off and neutral position switch. High pressure direct operated relief valve fixed setting with bypass. High-pressure relief valves with integrated boost function. Adjustable pressure cut-off is standard.
SPECIFICATIONS
- Manufacturer Rexroth
- Model A4VG28HWDL1/32R-NSC10N005E-S
- Series 32
- Disp. 1.7 cu. in. / rev.
- Pump Type Piston
- Rotation CW
- Pressure:
5801 PSI nominal pressure
6527 PSI peak pressure - Speed:
500 RPM min.
4250 RPM max. - Flow: 31.4 GPM
- Mount Two bolt SAE B
- Shaft 1″ dia. x 1-1/2″ long 15T spline w/ 3/8″-16 TPI tapped end
- Inlet Port 3/4″ 4 bolt flange, code 61
- Outlet Port 3/4″ 4 bolt flange, code 61
- Size 10-1/2″ x 8-1/2″ x 11-1/4″
- Shpg. 68 lbs.
