Description

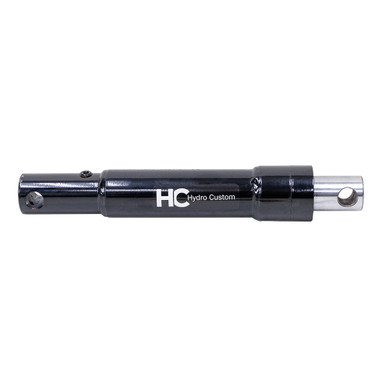

1.75″(45mm) x 6″(152mm) x 1.5″(38mm) SINGLE ACTING HYDRAULIC CYLINDER
New, Hydro Custom WSP-1506-0750 welded single acting snow plow hydraulic cylinder.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 1.75″(45mm) x 6″(152mm)
- Gland Retainer Threaded in
- Pressure 3000 PSI max.
- Rod Dia. 1.5″(38mm)
|
- Ports 1/4″ NPT
- Retracted Length 13″
- Gland Face to Rod Pin Center 1.375″
- Shpg. 13 lbs.
|
| END MOUNTINGS |
|
- Rod End Thru-Hole
- Width 1.25″
- Pin Center to Base End 0.68″
- Pin Hole 0.75″
|
- Base End Thru-Hole
- Width 1.56″
- Pin Center to Base End 0.68″
- Pin Hole 0.75″
|
