Description

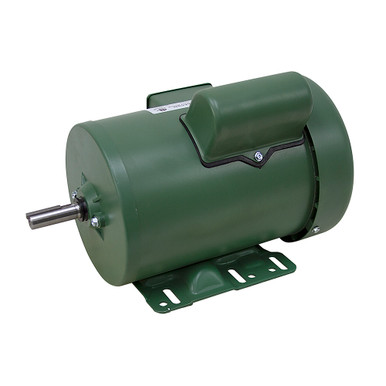

1 HP 1725 RPM 115/230 VOLT AC BASE MOUNT MOTOR
Brand new, WORLDWIDE FM1-18-56, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/Induction run motor for reduced amperage and high torque. Manual thermal overload protection.
SPECIFICATIONS
- Power 1 HP
- Voltage 115/230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 13.0/6.5 Amps
- Speed 1725 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 56
- Base Mount Six 1-1/4″ x 5/16″ elliptical slots on 2″ to 5″ x 4-7/8″ to 5-7/8″ centers
- Shaft 5/8″ dia. x 1-7/8″ overall length w/ 3/16″ wide x 1-3/4″ long keyway
- Size 12.5″ x 8.75″ x 8″
- Shpg. 41 lbs.
