Description

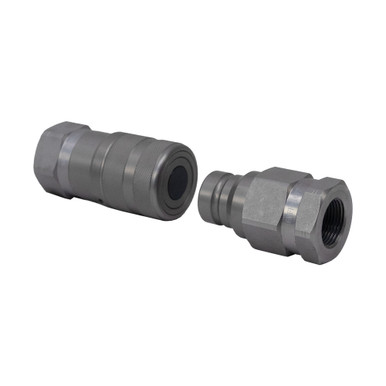

1″ NPT FLUSH FACE QUICK COUPLER ISO 16028
Brand new, Horizon KSP1 series flush face quick coupler. Includes body and tip. Flush face design is easily cleaned, minimizes oil spillage during disconnection and air inclusion during connection. One-handed, push-to-connect convenience. Commonly used on many models of skid-steer loaders and construction and agricultural equipment. Plated steel construction with nitrile NBR seals and Teflon backup ring.
Interchangeable with other brands of quick couplings that conform to International Standard ISO 16028 dimensional requirements.
SPECIFICATIONS
- Brand Horizon
- Series KSP1
- ISO Standard 16028
- ISO Body Size 1″
- Ports 1″ NPT
- Tip Diameter 1.414″
- Pressure, Working 3000 PSI Max
- Pressure, Burst 12000 PSI
- Flow 49.9 GPM Max
- Temperature Range -25° C to 125° C
- Oil Spillage (at disconnect) 0.03 cc
- Coupler O.D. 2-3/16″
- Coupled Length 7-1/16″
- Shpg. 6 lbs.
Body for coupler
| 1″ NPT Flush Face Quick Coupler Body ISO 16028 Horizon 16FFF-16FP |
903793 |
Tip for coupler
| 1″ NPT Flush Face Quick Coupler Tip ISO 16028 Horizon 16MFF-16FP |
903792 |
Dust cap for coupler tip
| Dust Cap For 1″ Flush Face Coupler Tip Horizon FFM16 CAP/H4034 |
904752 |
Dust plug for coupler body
| Dust Plug For 1″ Flush Face Coupler Body Horizon FFF16 PLUG |
904753 |
