Description
SINGLE SPOOL 30 GPM BRAND OC CONTROL VALVE W/ FLOW CONTROL

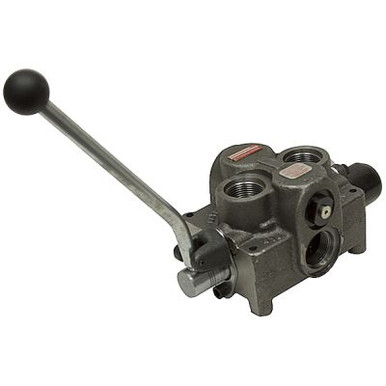

Brand new, BRAND HYDRAULICS model DCF16M304LF1 directional control valve with flow control. Combines a 4-way directional control valve with a full range, pressure-compensated, by-pass type flow control valve and a pilot-operated relief valve. Extremely fine flow metering to the work ports in direct proportion to the handle movement. Cast iron body with Buna-N O-rings. Handle included.
SPECIFICATIONS
- Manufacturer BRAND
- Model Number DCF16M304LF1
- Open Center
- Spools One
- Flow 30 GPM max.
- Pressure 3,000 PSI max.
- Relief Valve Adj. set at 1,500 PSI
- Reqd. Filtration 20 micron
- In/Out Ports SAE 16
- Work Ports SAE 16
- Mount 4 bolts on
4-3/4″ x 3-3/8″ centers - Size 9.0625″ x 5.03125″ x 4.25″
- Shpg. 18 lbs.
Spool Details:
Spool 1 Double Acting, metered flow motor spool, friction detent
