Description
FINE METERING SINGLE SPOOL 13 GPM TANDEM CENTER CONTROL VALVE W/ FLOAT DETENT

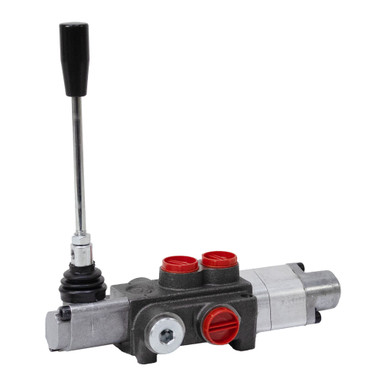

New Chief 220871 4-way 4-position tandem center fine metering valve w/ float detent with name plate. Used for double acting cylinders. The valve’s work ports are blocked in neutral. When in the float detent, work ports are open to tank to allow cylinder to “float”. This valve features cast iron construction and precisely machined hydraulic channels that provide improved throughput and metering.
SPECIFICATIONS
- Brand Chief
- Model Number 220871
- Open Center
- Spools 1
- Spool Type 4 Way 4 Position
- Flow 13 GPM
- Pressure 3625 PSI
- In/Out Ports 10 SAE
- Work Ports 8 SAE
- Mount Two 0.35″ thru holes
- Handle Length 6.38″
- Size 9.58″ x 3.42″ x 3.42″ w/o handle
- Shpg 8 lbs.
Spool Details:
Spool 1 Double Acting cylinder spool, spring to center with float detent
