Description

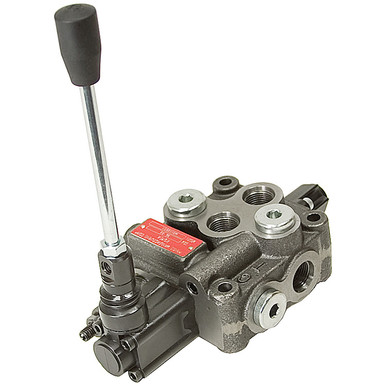

COMPACT 1 SPOOL DOUBLE ACTING DIRECTIONAL CONTROL VALVE W/FLOAT
Brand new WOLVERINE by PRINCE MB series directional control valve with float for operating a double acting cylinder. Ideal for small tractor and other low flow applications requiring a compact control valve. Features include monoblock construction, load check, built-in adjustable pressure relief valve, spring centering spool action with detented float, open center with enclosed plug to convert to power beyond or closed center, side or top inlet/outlet ports and vertical or horizontal handle mounting.
SPECIFICATIONS
- Brand Prince Mfg.
- Model Number MB11G5C1
- Open Center Convertible to power beyond or closed center
- Spools One
- Flow 8 GPM max.
- Pressure 3500 PSI max.
- Relief Valve 2000 PSI, adj. 2000-3500 PSI
- Reqd. Filtration ISO 4406 19/17/14
- In/Out Ports SAE 8
- Work Ports SAE 8
- Mount 3 hole base
- Size 9.125″ x 4″ x 2.25″
- Shpg. 9 lbs.
Spool Details:
Spool 1 Double Acting cylinder spool, spring to center with detent float
