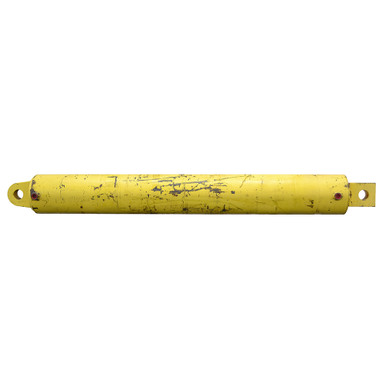

10" x 71.75" x 3.5" Double Acting Hydraulic Cylinder 410006X3

10″ x 71.75″ x 3.5″ Double Acting Hydraulic Cylinder 410006X3

Original price was: $1,149.95.Current price is: $229.99.

SKU: 904769 Category:

Description

10″ x 71.75″ x 3.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 410006X3. Cylinder has slight rod pitting at seal area on rod. Cylinder tested at 2000 PSI and no leakage. Sold as is.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 10″ x 71.75″
  • Barrel Thickness 0.875″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 3.5″
  • Ports SAE 16
  • Retracted Length 101″
  • Gland Face to Rod Pin Center 5.5″
  • Shpg. 1335 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.08″
  • Pin-Center-To-Tang-End 3.46″
  • Pin Hole 3″
  • Base End Tang
  • Width 3.05″
  • Pin-Center-To-Tang-End 3.41″
  • Pin Hole 3″
