115 VOLT AC DOUBLE ACTING DIRECTIONAL CONTROL VALVE

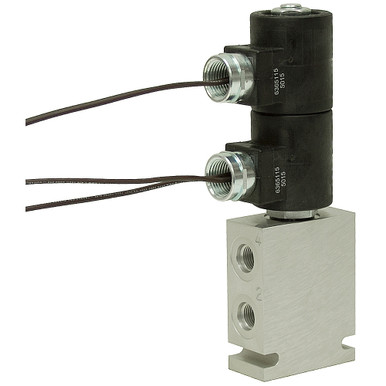

Brand new HYDRAFORCE SV10-47A-6T-N-115-DL dual solenoid directional control valve for operating double acting cylinders.
SPECIFICATIONS
- Brand Hydraforce
- Model Number SV10-47A-6T-N-115-DL
- Open Center
- Spools One
- Flow 5 GPM
- Pressure 3500 PSI
- Voltage 115 VAC
- Amperage 0.18
- Coil Duty Rating Continuous from 85% to 115% of nominal voltage
- In/Out Ports SAE 6
- Work Ports SAE 6
- Mount 2 hole side 2″ c/c
- Size 2-1/2″ x 1-3/4″ x 7-3/4″
- Shpg. 5 lbs.
Spool Details:
Spool 1 Double Acting cylinder spool, 115 volt AC solenoid, spring to center
Valve consists of HydraForce part numbers:
Coil 6365115 (Qty 2)
Body 7024460
Cartridge SV10-47A-0-N-000
| 115 Volt AC Coil w/ Wire Leads Hydraforce 6365115 | 900864 |
| Series 10 4-Way SAE 6 Valve Housing Hydraforce 7024460 | 901154 |
| Solenoid Catridge Valve 4 Port 3 Position Tandem Center Hydraforce SV10-47A-0-N-000 | 902398 |
