12.2 cu in Hydraulic Motor Hydro Custom BM5A-EACBDCD

Description

12.2 cu in Hydraulic Motor Hydro Custom BM5A-EACBDCD

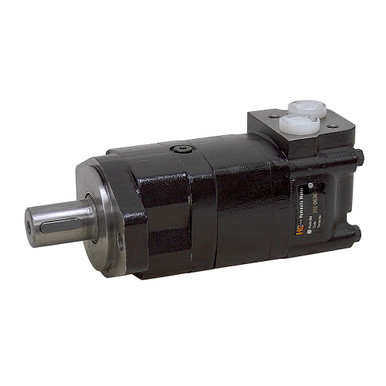

Brand new Hydro Custom BM5 hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn 2000 series motors. Double tapered roller bearings permit high radial loads.
SPECIFICATIONS

• Brand Hydro Custom
• Model BM5A-EACBDCD
• Manufacturer Part Number CUM 351-0635
• Displacement 12.2 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    3045 PSI cont.
    3770 PSI int.
• Torque
    4791 in-lbs. cont.
    5622 in-lbs. int.
• Speed
    365 RPM cont.
    577 RPM int.
• Flow
    20 GPM cont.
    30 GPM int.
• Mount SAE A 2 Bolt
• Shaft 1.25″ x 1.811″ long w/ 5/16″ woodruff key, end tapped 3/8″-16
• Ports SAE 10
• Case Drain SAE 4
• Size 11.155″ x 3.74″ x 5.118″
• Shpg. 28 lbs.
