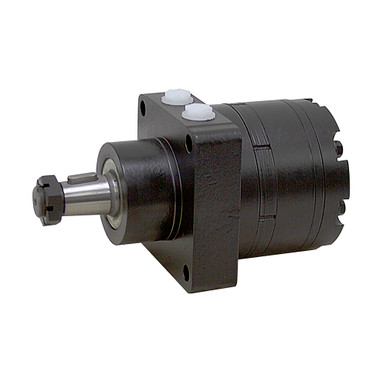

12.2 cu in Hydraulic Wheel Motor Hydro Custom BMEW-CWGABA-F

Description

12.2 cu in Hydraulic Wheel Motor Hydro Custom BMEW-CWGABA-F
Brand new Hydro Custom BMEW series hydraulic wheel motor. Gerolor power element. Needle bearings allow for high axial and radial loads.
SPECIFICATIONS

• Brand Hydro Custom
• Model BMEW-CWGABA-F
• Manufacturer Part Number CUM 392-3002F
• Displacement 12.2 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    3000 PSI cont.
    3480 PSI int.
• Torque
    4708 in-lbs. cont.
    5328 in-lbs. int.
• Speed
    330 RPM cont.
    425 RPM int.
• Flow
    18.4 GPM cont.
    22.4 GPM int.
• Mount 4 Bolt wheel mount on 5.81″ bolt circle with 3-1/4″ O.D. pilot
• Shaft 1-1/4″ tapered x 4.094″ long w/5/16″ parallel key, end threaded 1″-20 with castle nut
• Ports SAE 10
• Size 10.471″ x 4.994″ x 4.994″
• Shpg. 29 lbs.
