Description
12 VOLT DC SOLENOID VALVE

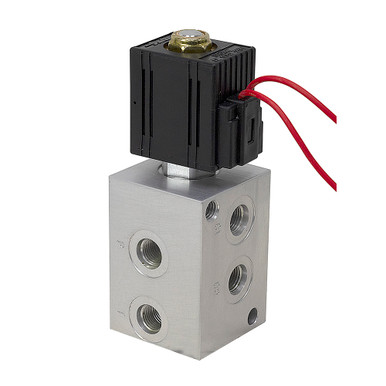

New Parker DSL104 N 4-way, 2-position spool-type solenoid valve. Flow direction when solenoid De-Energized, flow is blocked to all ports. When the solenoid is Energized flow from port P to port C2, and port C1 to port T. Aluminum body.
SPECIFICATIONS
- Brand Parker
- Cartridge Number DSL04 N
- Coil Number S10LW
- Body Number 32598
- Closed Center
- Flow 10 GPM
- Pressure 3600 PSI
- Voltage 12 Volt DC
- Connector Two wire
- In/Out Ports SAE 6
- Mount Two 0.35″ thru-holes
- Size 6″ x 2-1/4″ x 2-1/4″
- Shpg 3 lbs.
