12 VOLT DC DOUBLE ACTING DIRECTIONAL CONTROL VALVE

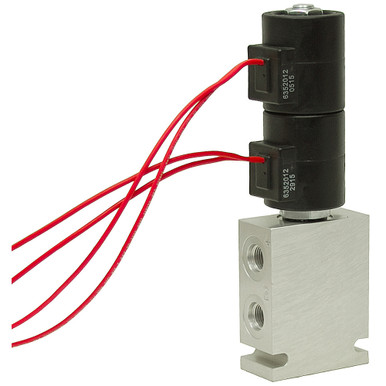

Brand new HYDRAFORCE SV10-47A-6T-N-12-DL dual solenoid directional control valve for operating double acting cylinders.
SPECIFICATIONS
- Brand HydraForce
- Model Number SV10-47A-6T-N-12-DL
- Open Center
- Spools One
- Flow 5 GPM
- Pressure 3500 PSI
- Voltage 12 VDC
- Amperage 1.67
- Coil Duty Rating Continuous from 85% to 115% of nominal voltage
- In/Out Ports SAE 6
- Work Ports SAE 6
- Mount 2 hole side 2″ c/c
- Size 2-1/2″ x 1-3/4″ x 7-3/4″
- Shpg. 5 lbs.
Spool Details:
Spool 1 Double Acting cylinder spool, 12 volt DC solenoid, spring to center
Valve consists of HydraForce part numbers:
Coil 6352012 (Qty 2)
Body 7024460
Cartridge SV10-47A-0-N-000
| 12 Volt DC coil w/ Wire Leads Hydraforce 6352012 | 900863 |
| Series 10 4-Way SAE 6 Valve Housing Hydraforce 7024460 | 901154 |
| Solenoid Catridge Valve 4 Port 3 Position Tandem Center Hydraforce SV10-47A-0-N-000 | 902398 |
