Description

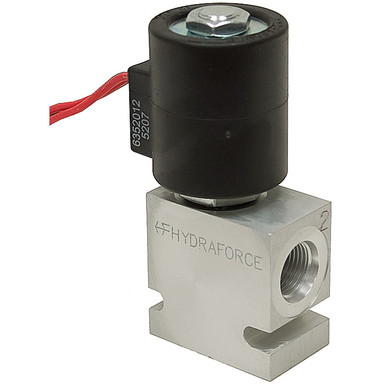

12 VOLT DC NORMALLY CLOSED SOLENOID POPPET VALVE
Brand new, HYDRAFORCE model SV10-22-8T-N-12-DL solenoid-operated, 2-way, poppet type valve. Use for starting, stopping, or dumping of hydraulic circuits to 3000 PSI. Continuous rated solenoid with hardened seat for long life and low leakage.
When de-energized, the valve acts as a check valve, allowing flow to pass from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the poppet lifts to open the port 2 to port 1 flow path. In this mode, flow is also allowed from port 1 to port 2.
SPECIFICATIONS
- Brand Hydraforce
- Model Number SV10-22-8T-N-12-DL
- Voltage 12 volt DC
- Amperage 1.67 Amps
- Flow 12-15 GPM max.
- Pressure 3,000 PSI PSI max.
- Coil Duty Rating Continuous from 85% to 115% of nominal voltage
- Ports SAE 8
- Shpg. 2 lbs.
Valve consists of HydraForce part numbers:
Coil 6352012
Body 7024280
Cartridge SV10-22-0-N-00
| 12 Volt DC coil w/ Wire Leads Hydraforce 6352012 | 900863 |
| Series 10 2-Way SAE 8 Valve Housing Hydraforce 7024280 | 900865 |
| Solenoid Cartridge Valve 2-Way Normally Closed HydraForce SV10-22-0-N-00 | 900861 |
