Description

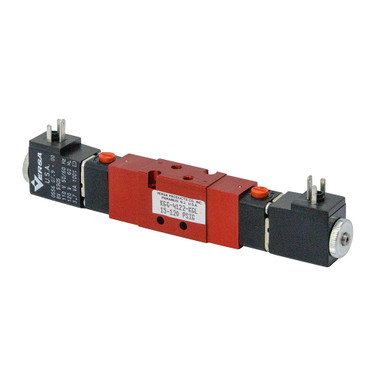

Double Solenoid Air Valve
New, Versa KGG-4122-KGL 4-way 2-Position body ported double solenoid (Momentary Contact) air valve with manual override (Holding Type) on solenoids.
SPECIFICATIONS
- Brand Versa
- Model KGG-4122-KGL
- Series Mini K-3.0
- Type Internally piloted solenoid valve
- Voltage
110 Volt AC 50/60 Hz
120 Volt AC 60 HZ - Flow Cofficient(Cv) 0.23
- PSI Range 15-120 PSI
- Ambient Temperature Range 5 to 125° F (-15 to +50° C)
- Number of Solenoids 2
- Number of Positions 2
- Valve Function 4-Way 2-Position
- Number of Ports 5
- Ports 10-32 UNF
- Body and Manifold Material Anodized Aluminum
- Mounting
Two 0.12″ thru holes on 7/8″ centers
Two 0.147″ holes on 1/2″ centers - Override Maual Override
- Electrical Connection Miniature Hirschmann (DIN) style 3-prong plug
- Continous Duty Rating 100%
- Size 6″ x 1-7/16″ x 5/8″
- Shpg 0.45 lbs.
