Description

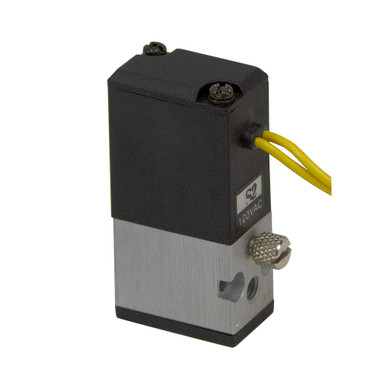

120 Volt AC Normally Closed (NC) Humphrey Solenoid Air Valve H030E1-83-120VAC
SPECIFICATIONS
- Manufacturer Humphrey
- Model Number H030E1-83-120VAC
- Type Direct acting valve
- Voltage 120 Volt AC
- Flow Coefficient (Cv) 0.04
- PSI Range 0 – 100
- Number of Solenoids 1
- Number of Positions 2
- Valve Function Normally Closed (NC)
- Number of Ports 3
- Ports A, B & P 10-32 UNF
- Ports R1 & R2 1.8 mm dia.
- Mount Two 2.8mm dia. Thru holes on 11mm centers
- Override Manual override Non-Lock type
- Electrical Connection 2 Wires Connector, No Leads
- Included Accessories N/A
- Size 1 15/16″ x 9/16″ x 1 3/16″
- Shpg. 0.15 lbs.
