Sale!

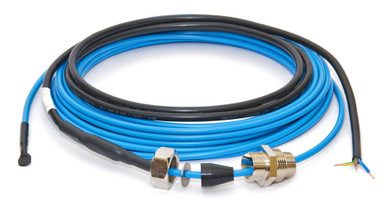

140F0013 Danfoss DEVIaqua™ 9T

140F0013 Danfoss DEVIaqua™ 9T

Original price was: $675.18.Current price is: $135.04.

SKU: 140F0013 Category: Tag:

Description

Product details

Gross weight 4.37 kg
Net weight 4.33 kg
EAN 5703466201664
Gross weight 4.37 kg
Net weight 4.33 kg
EAN 5703466201664



Bending diameter [mm] [Min] 50 mm
Cable diameter [mm] 7 mm
Cable height [mm] 7 mm
Cable length [m] 70 m
Cable on drum No
Cable output [W/m] 9 W/m
Cable resistance [Ohm] 84 Ohm
Cable screen Copper braid
Cable type Twin conductor
Cable width [mm] 7 mm
Certification company Intertek Semko
Cold lead Yes
Cold lead conductor quantity 3
Cold lead length [m] 2.3 m
Cold lead quantity 1
Cold lead size [mm²] 1.5 mm2
Cold lead type DTCL
Conductor insulation XLPE
Cut to length No
Deformation strength [N] 600 N
DEVIaqua 9T 630W 230V 70m
Element IP Class IPX7
Heating output [W] 630 W
Heating principle Serial resistive
Installation temperature [°C] [Min] -5 °C
Lead free Yes
Non operating temperature [°C] [Max] 85 °C
Operating temperature [°C] [Max] 65 °C
Outer sheath MDPE
Outer sheath colour Light blue
Package depth [mm] 380 mm
Package height [mm] 120 mm
Package width [mm] 380 mm
Product group Heating Cables
Product name DEVIaqua™ 9T
Pulling strength [N] 120 N
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Type DEVIaqua™ 9T
UV Protected Yes
Warranty [Year] 20
Water temperature [°C] [Max] 23 °C
Bending diameter [mm] [Min] 50 mm
Cable diameter [mm] 7 mm
Cable height [mm] 7 mm
Cable length [m] 70 m
Cable on drum No
Cable output [W/m] 9 W/m
Cable resistance [Ohm] 84 Ohm
Cable screen Copper braid
Cable type Twin conductor
Cable width [mm] 7 mm
Certification company Intertek Semko
Cold lead Yes
Cold lead conductor quantity 3
Cold lead length [m] 2.3 m
Cold lead quantity 1
Cold lead size [mm²] 1.5 mm2
Cold lead type DTCL
Conductor insulation XLPE
Cut to length No
Deformation strength [N] 600 N
DEVIaqua 9T 630W 230V 70m
Element IP Class IPX7
Heating output [W] 630 W
Heating principle Serial resistive
Installation temperature [°C] [Min] -5 °C
Lead free Yes
Non operating temperature [°C] [Max] 85 °C
Operating temperature [°C] [Max] 65 °C
Outer sheath MDPE
Outer sheath colour Light blue
Package depth [mm] 380 mm
Package height [mm] 120 mm
Package width [mm] 380 mm
Product group Heating Cables
Product name DEVIaqua™ 9T
Pulling strength [N] 120 N
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Type DEVIaqua™ 9T
UV Protected Yes
Warranty [Year] 20
Water temperature [°C] [Max] 23 °C

DEVIaqua 9T 630W 230V 70m

Product details

Gross weight 4.37 kg
Net weight 4.33 kg
EAN 5703466201664
Gross weight 4.37 kg
Net weight 4.33 kg
EAN 5703466201664



Bending diameter [mm] [Min] 50 mm
Cable diameter [mm] 7 mm
Cable height [mm] 7 mm
Cable length [m] 70 m
Cable on drum No
Cable output [W/m] 9 W/m
Cable resistance [Ohm] 84 Ohm
Cable screen Copper braid
Cable type Twin conductor
Cable width [mm] 7 mm
Certification company Intertek Semko
Cold lead Yes
Cold lead conductor quantity 3
Cold lead length [m] 2.3 m
Cold lead quantity 1
Cold lead size [mm²] 1.5 mm2
Cold lead type DTCL
Conductor insulation XLPE
Cut to length No
Deformation strength [N] 600 N
DEVIaqua 9T 630W 230V 70m
Element IP Class IPX7
Heating output [W] 630 W
Heating principle Serial resistive
Installation temperature [°C] [Min] -5 °C
Lead free Yes
Non operating temperature [°C] [Max] 85 °C
Operating temperature [°C] [Max] 65 °C
Outer sheath MDPE
Outer sheath colour Light blue
Package depth [mm] 380 mm
Package height [mm] 120 mm
Package width [mm] 380 mm
Product group Heating Cables
Product name DEVIaqua™ 9T
Pulling strength [N] 120 N
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Type DEVIaqua™ 9T
UV Protected Yes
Warranty [Year] 20
Water temperature [°C] [Max] 23 °C
Bending diameter [mm] [Min] 50 mm
Cable diameter [mm] 7 mm
Cable height [mm] 7 mm
Cable length [m] 70 m
Cable on drum No
Cable output [W/m] 9 W/m
Cable resistance [Ohm] 84 Ohm
Cable screen Copper braid
Cable type Twin conductor
Cable width [mm] 7 mm
Certification company Intertek Semko
Cold lead Yes
Cold lead conductor quantity 3
Cold lead length [m] 2.3 m
Cold lead quantity 1
Cold lead size [mm²] 1.5 mm2
Cold lead type DTCL
Conductor insulation XLPE
Cut to length No
Deformation strength [N] 600 N
DEVIaqua 9T 630W 230V 70m
Element IP Class IPX7
Heating output [W] 630 W
Heating principle Serial resistive
Installation temperature [°C] [Min] -5 °C
Lead free Yes
Non operating temperature [°C] [Max] 85 °C
Operating temperature [°C] [Max] 65 °C
Outer sheath MDPE
Outer sheath colour Light blue
Package depth [mm] 380 mm
Package height [mm] 120 mm
Package width [mm] 380 mm
Product group Heating Cables
Product name DEVIaqua™ 9T
Pulling strength [N] 120 N
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Type DEVIaqua™ 9T
UV Protected Yes
Warranty [Year] 20
Water temperature [°C] [Max] 23 °C
