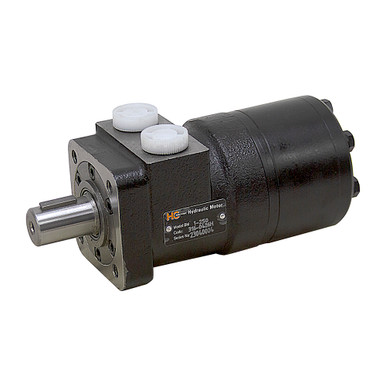

15.25 cu in Hydraulic Motor Hydro CustomBM1H-HBADADB

Description

15.25 cu in HYDRAULIC MOTOR HYDRO CUSTOM BM1H-HBADADB
Brand new, Hydro Custom BM1 series hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn H series and Danfoss DH series motors.
SPECIFICATIONS

• Brand Hydro Custom
• Model BM1H-HBADADB
• Manufacturer Part Number CUM 316-0426H
• Displacement 15.25 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    1595 PSI cont.
    2030 PSI int.
• Torque
    3182 in-lbs. cont.
    4022 in-lbs. int.
• Speed
    220 RPM cont.
    270 RPM int.
• Flow
    15 GPM cont.
    20 GPM int.
• Mount 4 bolts on 3.25″ B.C.
• Shaft 1″ x 1.535″ long, w/ 1/4″ woodruff key, end tapped 1/4″-20
• Ports 1/2″ NPT
• Case Drain SAE 4
• Size 8.901″ x 3.622″ x 3.622″
• Shpg. 19 lbs.
