15:1 SHAFT MOUNT REDUCER

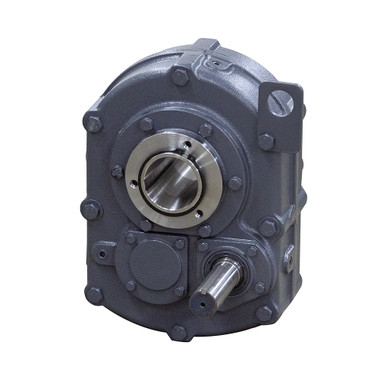

Brand new, WORLDWIDE ELECTRIC CORP Eliminator screw conveyor shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Ball bearings. Tapered bushing output (bushing not included). Torque arm included. Suitable for screw conveyor applications when used with screw conveyor flange and drive shaft (Not included). Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.
SPECIFICATIONS
- Brand WORLDWIDE ELECTRIC CORP
- Model SCSMR3-15/1
- Ratio 15:1
- Input Power see table below
- Output see table below
- Torque see table below
- Input Shaft 1-1/4″ diam. X 4-5/16″ w/ 1/4″ keyway
- Output Bore see table below
- Size 9-1/4″ x 12-7/8″ x 7-9/16″
- Shpg. 140 lbs.
Service Class I
Service Class II
Service Class III
HP
RPM
Torque
HP
RPM
Torque
HP
RPM
Torque
| 3 |
28-30 |
6055-5652 in-lbs |
2 |
16-24 |
7065-4710 in-lbs |
2 |
24-38 |
4710-2975 in-lbs |
| 5 |
32-50 |
8831-5652 in-lbs |
3 |
26-46 |
6521-3686 in-lbs |
3 |
40-70 |
4239-2422 in-lbs |
| 7.5 |
52-74 |
8151-5728 in-lbs |
5 |
50-74 |
5652-3819 in-lbs |
5 |
74-105 |
3819-2691 in-lbs |
| 10 |
78-105 |
7246-5382 in-lbs |
7.5 |
78-105 |
5434-4037 in-lbs |
7.5 |
110-140 |
3853-3025 in-lbs |
| 15 |
110-140 |
7707-6055 in-lbs |
10 |
100-140 |
56252-4037 in-lbs |
– |
– |
– |
OUTPUT BORE OPTIONS
| BORE |
ITEM |
BORE |
ITEM |
| 1-11/16″ |
602627 |
1-3/4″ |
602628 |
| 1-7/8″ |
602629 |
1-15/16″ |
602630 |
| 2″ |
602631 |
2-13/16″ |
602638 |
OTHER OPTIONS
| MOTOR MOUNT |
602610 |
| BACKSTOP ASSEMBLY |
602615 |
| BELT GUARD |
602652 |
