Description
Returned Item: This motor has marks on mounting holes but was not fully installed. Sold as is.

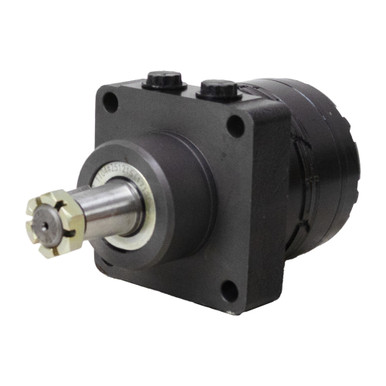

18 cu in HYD WHEEL MOTOR
DYNAMIC BMER series wheel mount hydraulic motor. Interchangeable with PARKER and WHITE motors.
SPECIFICATIONS
- Brand Dynamic
- Model Number 66320
- Build Number BMER2-300-WS-T4-S
- Disp. 18.08 cu.in./rev.
- Pressure
2970 PSI (Cont.)
3480 PSI (Int.) - Torque
7169 in-lb. (Cont.)
8231 in-lb. (Int.) - Speed
250 RPM (Cont.)
315 RPM (Int.) - Flow
19.8 GPM (Cont.)
25 GPM (Int.) - Rotation Reversible
- Mount 4 Bolt Wheel
5.812 bolt circle, 3-1/4″ pilot dia. - Shaft 1-1/4″ tapered x 4.21″ shaft w/5/16″ key and threaded end
- Ports SAE 10
- Size 5.30″ x 5.25″ x 5.45″
- Shpg. 32 lbs.
