Description

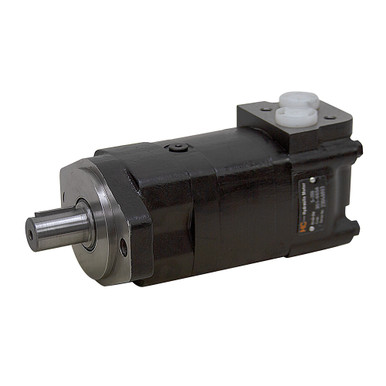

18.61 cu in Hydraulic Motor Hydro Custom BM5A-FAHBDCD
Brand new Hydro Custom BM5 hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn 2000 series motors. Double tapered roller bearings permit high radial loads.
SPECIFICATIONS
- Brand Hydro Custom
- Model BM5A-FAHBDCD
- Manufacturer Part Number CUM 351-0657
- Displacement 18.61 cu in
- Motor Type Gerolor
- Rotation Reversible
- Pressure
2900 PSI cont.
3480 PSI int. - Torque
5967 in-lbs. cont.
6851 in-lbs. int. - Speed
246 RPM cont.
365 RPM int. - Flow
20 GPM cont.
30 GPM int. - Mount SAE A 2 Bolt
- Shaft 1″ x 1.615″ long w/ 1/4″ parallel key, end tapped 1/4″-20
- Ports SAE 10
- Case Drain SAE 4
- Size 11.943″ x 3.74″ x 5.118″
- Shpg. 30 lbs.
