Description

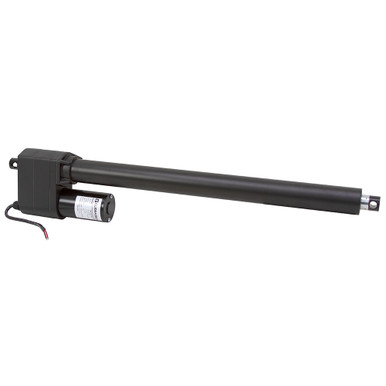

18″ STROKE HIGH SPEED 12 VOLT DC 1000 LB. LINEAR ACTUATOR with LIMIT SWITCHES
Brand new, GLIDEFORCE model GF17-121018-1-65 heavy duty linear actuator. Ball screw drive with built-in overload clutch. Metal housing is water resistant and sealed against dust. Permanent magnet motor. Limit switches at each end of travel.
SPECIFICATIONS
- Brand Glideforce
- Model Number GF17-121018-1-65
- Stroke 18″
- Voltage 12 Volt DC
- Push/Pull Rating
Dynamic 1000 lbs. max
- Extension Speed
No Load 1.5 in/sec
Max Load 1.1 in/sec
- Amps
No Load 3.6
Full Load 26.6
- Gear Ratio 10:1
- Duty 25%
- Operational Temperature Range
-13° F to +149° F
- Enclosure IP65
- Pin Holes 1/2″
- Retracted Length 32.8″
- Shaft Dia. 1-1/8″
- Size 33.75″ x 3.04″ x 5.97″
- Shpg. 20 lbs.
Mounting Brackets
| ID Series Linear Actuator Mounting Bracket – Aluminum GlideForce LA-ID-BRACKET |
500597 |
| ID Series Linear Actuator Mounting Bracket Steel GlideForce LA-ID-BRKT-S-PC |
501070 |
| Mounting Clevis for ID Series Linear Actuators Aluminum GlideForce LA-ID-CLEVIS |
501071 |
Compatible Polarity Reversing Switches
| DPDT-CO 30 Amp Maintained Toggle Switch GlideForce SWT-TOG-4W |
500725 |
| DPDT-CO 30 Amp Momentary Toggle Switch GlideForce SWT-TOG-MOM-4W |
500726 |
Optional Reversing Relay
| 12 Volt DC 100 Amp Reversing Relay GlideForce GF90-1244 |
500558 |
