Description
Product details
| Gross weight |
3.2 kg |
| Net weight |
3.05 kg |
| Body material |
AISI 304 |
| Connection standard |
BSP |
|

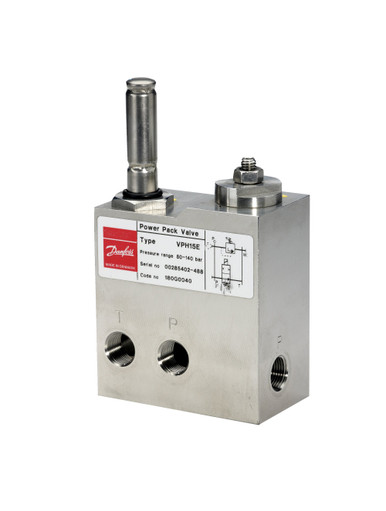

VPH15E POWERPACK VALVE NO 25-140B |
| Flow [gpm] |
4 gal/min |
| Flow [gpm] [Max] |
5.28 gal/min |
| Flow [l/min] |
15 L/min |
| Flow [l/min] [Max] |
20 L/min |
| Inlet connection size [in] |
3/8 in |
| Media temperature [°C] [Max] |
50 °C |
| Media temperature [°C] [Min] |
-30 °C |
| Media temperature [°F] [Max] |
122 °F |
| Media temperature [°F] [Min] |
-22 °F |
| Operating pressure [barg] [Max] |
140 barg |
| Operating pressure [barg] [Min] |
25 barg |
| Operating pressure [psig] [Max] |
2030 psig |
| Operating pressure [psig] [Min] |
360 psig |
| Outlet connection size [in] |
3/8 in |
| Product group |
Valve |
| Product name |
Solenoid operated valves |
| Type |
VPH |
| Type designation |
VPH 15 E NO |
| Body material |
AISI 304 |
| Connection standard |
BSP |
|
VPH15E POWERPACK VALVE NO 25-140B |
| Flow [gpm] |
4 gal/min |
| Flow [gpm] [Max] |
5.28 gal/min |
| Flow [l/min] |
15 L/min |
| Flow [l/min] [Max] |
20 L/min |
| Inlet connection size [in] |
3/8 in |
| Media temperature [°C] [Max] |
50 °C |
| Media temperature [°C] [Min] |
-30 °C |
| Media temperature [°F] [Max] |
122 °F |
| Media temperature [°F] [Min] |
-22 °F |
| Operating pressure [barg] [Max] |
140 barg |
| Operating pressure [barg] [Min] |
25 barg |
| Operating pressure [psig] [Max] |
2030 psig |
| Operating pressure [psig] [Min] |
360 psig |
| Outlet connection size [in] |
3/8 in |
| Product group |
Valve |
| Product name |
Solenoid operated valves |
| Type |
VPH |
| Type designation |
VPH 15 E NO |
Operating pressure [barg] [Min]: 25, Operating pressure [barg] [Max]: 140, Operating pressure [psig] [Min]: 360, Operating pressure [psig] [Max]: 2030
