2.25" x 27.88" x 1.5" Double-Acting Hydraulic Cylinder Bailey 323-859

2.25″ x 27.88″ x 1.5″ Double-Acting Hydraulic Cylinder Bailey 323-859

Original price was: $149.95.Current price is: $37.49.

SKU: 906708 Category:

Description

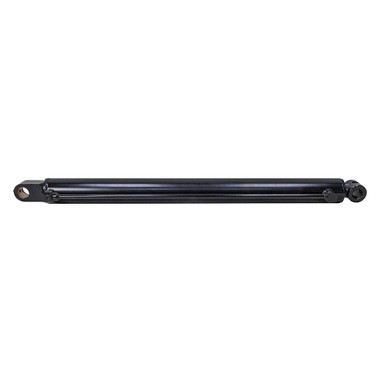

2.25″ x 27.88″ x 1.5″ DOUBLE-ACTING HYDRAULIC CYLINDER
New, Bailey 323-859 welded double-acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.25″ x 27.88″
  • Gland Retainer Threaded in
  • Pressure 2500 PSI max.
  • Rod Dia. 1.5″
  • Ports SAE 6
  • Retracted Length 35.625″
  • Gland Face to Rod Pin Center 1.5″
  • Shpg. 46 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2″
  • Width 2.25″
  • Pin Hole 1″
  • Base End Cross-Tube
  • O.D. 2″
  • Width 1.65″
  • Pin Hole 1.25″
