Description

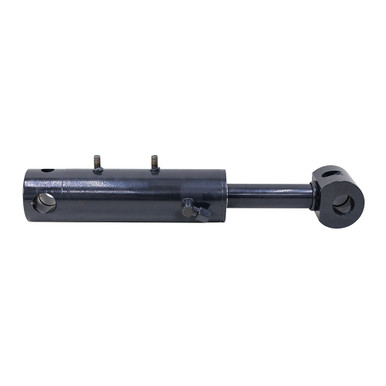

2.45″ (60mm) x 4.25″ (108mm) x 1.375″ (35mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, Bobcat 7179957 welded double acting hydraulic cylinder. Two M10-1.5 threaded mounting studs on 3.2″ (81mm) centers.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.45″ (60mm) x 4.25″ (108mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.375″ (35mm)
|
- Ports JIC 6
- Accessory Ports SAE 3
- Retracted Length 16.25″
- Gland Face to Rod Pin Center 6.25″
- Shpg. 23 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 2.915″
- Pin-Center-To-Tang-End 1.146″
- Pin Hole 1.175″ (30mm)
|
- Base End Thru-Hole
- Width 2.875″
- Pin Center to Base End 1.185″
- Pin Hole 1.175″ (30mm)
|
