Description

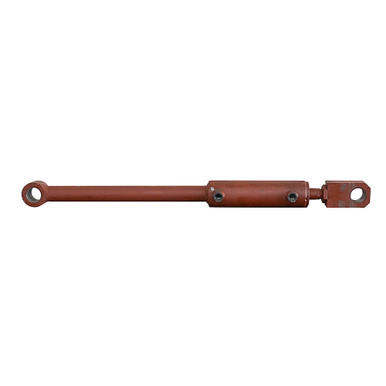

2.462″(62MM) x 5.875″(149MM) x 1.25″(32MM) HYDRAULIC CYLINDER
Unused old inventory. Atlas Copco/Dynapa D965172940, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.462″(62MM) x 5.875″(149MM)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.25″(32MM)
|
- Ports M18 x 1.5
- Retracted Length 35.5″
- Gland Face to Rod Pin Center 5.375″
- Shpg. 31 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 1.575″
- Pin-Center-To-Tang-End 1.358″
- Pin Hole 1.575″(40MM)
|
- Base End Tang
- Width 1.769″
- Pin-Center-To-Tang-End 1.380″
- Pin Hole 1.575″(40MM)
|
