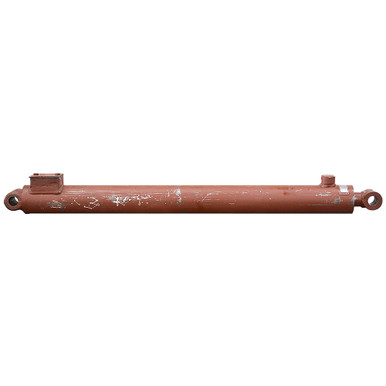

2.5″ x 24″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. GBI 10027-A, welded, double acting hydraulic cylinder. Cylinder has a 2.82″ x 3.061″ manifold with a SAE 6 work port.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.5″ x 24″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.5″
- Rod Thickness 1.5″
|
- Manifold Ports Two, 0.192″ holes on 1.125″ centers
- Manifold mount Two, 5/16″-18 TPI x 0.75″ bolt holes on 2.25″ centers
- Retracted Length 37″
- Gland Face to Rod Pin Center 2″
- Shpg. 53 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 1.878″
- Pin-Center-To-Tang-End 1″
- Pin Hole 1″
|
- Base End Tang
- Width 3.245″
- Pin-Center-To-Tang-End 1″
- Pin Hole 1″
|
