Description

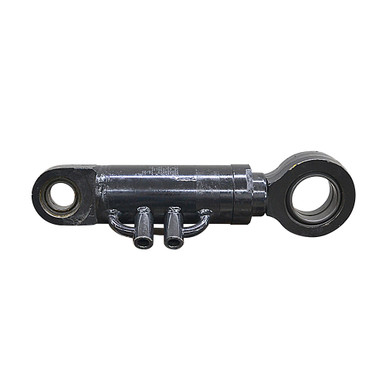

2.518″(65MM) x 3.875″(98MM) x 2.36″(60MM) DOUBLE ACTING HYDRAULIC CYLINDER
Old unused inventory, Clark Hurth 73501.601.01, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.518″(65MM) x 3.875″(98MM)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.36″(60MM)
|
- Ports M16 x 1.5
- Retracted Length 13.375″
- Gland Face to Rod Pin Center 3.25″
- Shpg. 30 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.577″
- Pin-Center-To-Swivel Eye-End 2.25″
- Swivel Eye Width 1.75″
- Pin Hole 2.365″(60MM)
|
- Base End Swivel Eye
- Width 1.37″
- Pin-Center-To-Swivel Eye-End 2.041″
- Swivel Eye Width 1″
- Pin Hole 1.375″(35MM)
|
