Description
2.684″(70mm) x 8.75″(222mm) x 1.422″(35mm) DOUBLE ACTING HYDRAULIC CYLINDER

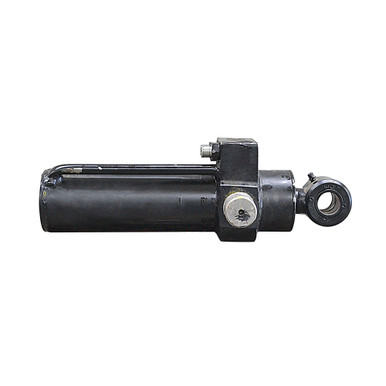

Unused old inventory. Bobcat 6962045, welded, double acting, hydraulic cylinder. Two common extend ports.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.684″(70mm) x 8.75″(222mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.422″(35mm)
|
- Ports JIS 60° Flare (M16 x 1.5)
- Retracted Length 5″
- Gland Face to Rod Pin Center 2″
- Shpg. 35 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 1.97″
- Pin-Center-To-Tang-End 1.286″
- Pin Hole 1.185″(30mm)
|
- Rod End Male Trunnion
- Pin Outside/Inside Width 7.125″ / 4″
- Pin-Center-To-Rod Pin Center 5″
- Pin Center To Base End 10″
- Pin Diameter 1.573″(40mm)
|
